The XML Library LT XML

This document describes the XML Library (LT XML version 1.2), which consists of a set of C programs for manipulating XML files and a C application program interface (API) designed to ease the writing of C programs which manipulate XML documents. The LT XML API has changed slightly since the previous release (version 1.1).. LT XML now understands the structure of XML DTDs and can validate documents against them. Scores of bug-fixes have been made. But API changes have been kept to a minimum.

The documentation has two main sections. XML utility programs built using the LT XML API documents the user-callable utility programs provided in the LT XML system.

The other sections starts with an overview of the data structures (in Type reference) used to represent SGML structure in the API. Then follows the function reference, whose first section is Initialising LT XML.

This documentation is built using DocBook 3.0. We distribute SGML source (which you can read if you must), HTML, and RTF (mainly for printing).

Because the documentation is made with SGML, it will, it says here, be much easier to maintain in future.

Last update 17 February 2000

Comments and questions to:

Table of Contents
I. User guide
1. Introduction
LT XML
How to read this document
Why we use XML
Acknowledgements
2. The LT XML Architecture
The Data Architecture
The System Architecture
Character encodings
3. simple.c -- A model LT XML application
4. Query language
Queries
Examples of LT XML queries
5. simpleq.c - A model LT XML application using queries
II. LT XML reference
I. XML utility programs built using the LT XML API
sggrep — works like the grep program in searching a file for regular string expressions. However, unlike grep , it is aware of the tree structure of XML files.
sgmltrans — translate XML files into another format.
sgrpg — systematically transform input document to changed output document
sgcount — count elements in an XML file.
knit — process compound documents using hyperlinks
unknit — create hyperlinked files from XML files
sgmltoken — Text tokenization.
sgmlseg — simple segmenter
sgmlsb — Sentence boundary marker.
pesis — Trivial version of James Clark's sgmls.
xmlnorm — XML normalizer.
textonly — strip out markup
simpleq — example program.
simple — example program.
sgsort — sort XML elements
nslshowddb — display document type information
II. Type reference
Char — type representing characters in the XML internal encoding
boolean — convenience type
NSL_BI_Type — type discriminator for NSL_Bits and NSL_Items
NSL_Item — type representing an SGML element, with contents.
NSL_Data — type representing SGML element content
NSL_Bit — type representing smallest transaction unit of event-level interface
NSL_Query — type which represents a path in hierarchical document structure
NSL_File — type which represents a stream for SGML input or output.
NSL_Doctype — a private type which the parser uses to access and record information about the syntax and document type of one or more SGML
NSL_ElementSummary — type representing information about a class of elements
NSL_AttributeSummary — type representing information about an attribute
NSL_EntitySummary — type representing information about an entity.
NSL_Attr — linked list of attribute specifications
III. Initialising LT XML
NSLInit — function to initialise LT XML and set level of error reporting.
NSLGetoptions — process standard options
NSLInitNames — function to control the behaviour of attribute names.
NSLClose — function to deallocate resources allocated by NSLInit
IV. Opening and closing input and output streams
OpenURL — function to open a stream to an XML document described by a URL.
OpenStream — function to create an NSL_File from an existing standard I/O FILE *.
OpenString — function to open a stream to or from an LT XML string.
ReadProlog — read document prolog under user control
SFFopen — function to open a stream to an XML document connected to a C stdio file handle.
SFopen — function to open a stream to an XML document specified by a file name file handle.
SFclose — function to close a file opened with SFFopen or similar.
SFrelease — function to close file, releasing memory and (optionally) NSL_Doctype
V. Document type information
LoadDoctype — load document type from file.
DoctypeFromDdb — function to read a description of an XML DTD which is contained in the .ddb file given by the file name filename.
DoctypeFromFile — function to read a description of an XML DTD which is contained in the XML file given by the file name filename.
VI. File positioning
SFseek — function that calls fseek on the FILE* associated with file.
SFtell — function that returns the seek pointer location as measured in bytes from the beginning of the file.
VII. URL Utilities
GetFileURL — function that returns the URL associated with file.
SetFileURL — function that sets the base URL associated with a file
url_merge — function to fill in default information in a target URL by merging it with a base URL. The target information takes precedence.
VIII. Reading SGML
GetNextBit — function that returns the next NSL_Bit on a stream
GetNextItem — function that returns the next NSL_Item on a stream
ItemParse — function that fills in an NSL_Item of type NSL_inchoate
IX. Queries
ParseQuery — function to convert a query to internal form
ParseQueryR — convert a query to internal form, allowing regular expressions as value of attributes
ParseQuery8 — convert an 8-bit query to internal form
ParseQueryR8 — convert an 8-bit query to internal form, allowing regular expressions as value of attributes
GetNextQueryItem — function that fetches the next item matching a query, optionally printing non-matching content as it is read
RetrieveQueryItem — function that searches an in-memory item for matches to a query
RetrieveQueryData — retrieve NSL_Datas which match a query
X. Printing
PrintBit — Print a single bit.
PrintStartTag — print the start-tag of a new item
PrintItemStartTag — print the start tag of an existing item
PrintEndTag — print the end-tag on an item
PrintItem — Print an item.
PrintText — Print text
PrintTextLiteral — Print text literally with no expansion of markup.
ForceNewline — ensure that a newline is put to the output file
ForceOutput — flush output to an SGML stream
XI. Attributes
GetAttrStringVal — Get the value of an attribute
GetAttrVal — get the value of an attribute.
GetAttrSVal — get an explicitly present attribute value
PutAttrVal — set an attribute value
GetIDVal — get the value of the ID attribute on an item
GetItemFromString — read an item from a string
XII. Creating LT XML data structures
NewNullNSLData — Create a new empty NSL_Data structure.
NewNullNSLItem — create a new item
NewTextNSLData — create a new NSL_Data containing some text
NewItemNSLData — Creates a new empty Item
XIII. Copying LT XML structures
CopyData — recursive copy of a list of sub-items
CopyItem — recursive copy of an item
XIV. Structure navigation and Modification
AddItemToEnd — Add an item after the existing daughters
MoveDataTail — Move the data after a given location to a new location.
InstallDataTail — Move an NSL_Data and its successors to a new location.
InstallData — function to move the successors of an NSL_Data to a new location.
LinkItem — create a data to hold an item, and link latter into place as child of an element
LinkText — like LinkItem but for text data
AddPCData — Add text below an item
NextDFSNoChildren — Return the first piece of "real content" after a data.
ObtainItem — find an NSL_Item within an NSL_Data
ParentItem — Find the parent item of an item
GetPCDataBelow — return first piece of text data below an item
XV. Freeing LT XML data structures
FreeBit — release memory associated with the item that a bit contains.
FreeData — Free the data.
FreeDoctype — Free the space occupied by a NSL_Doctype
FreeItem — free an item and its contents
FreeQuery — free a query
XVI. Accessing the DTD
DocumentIsNSGML — determine mode of document
ElementContent — Return a (string) representation of the content model for an element.
FindElementByName — element summary from name
FindElementAndName — element summary from non-unique name
ElementAttributes — return the attribute descriptions of an element summary
FindAttrSpec — obtain summary of an attribute
FindAttrSumAndName — obtain information about attribute of an element
ElementExists — find out whether it does
AttrExists — find out whether it does
GetAttrDefVal — Get the default value for an attribute.
GetAttrDeclaredValue — Get the declared value from an attribute summary.
NewAttrVal — add attribute and value to item
GetAttrDefaultValueType — Get default value type of an attribute
AttributeName — return the attribute name
GetAttrAllowedValues — find the allowed values for an attribute
GetEntity — summary information about an entity.
GetEntityValue — Get the value of an entity (as string)
GetEntityDataType — Obtain a value to indicate the nature of an entity.
XVII. Other functions
ElementUniqueName — get the unique name of an element.
ElementUniqueName8 — get the unique name of an element.
AttrUniqueName — unique name for attribute
AttrUniqueName8 — unique name for attribute
ParseRCData —
CurrentBitOffset — offset of current bit (for indexing)
CurrentItemOffset — offset of current item (for indexing)
XVIII. Manipulating Attributes
SetAttrValue — set value within attribute
GetAttrValue — Get the string value of an NSL_attr.
CopyAttr — fresh copy of an attribute
FindAttr — search for an attribute by name in an attribute list
FreeAttr — free the memory associated with a list of attribute-value pairs
XIX. Miscellaneous
ParseInit — no longer documented
List of Figures
4-1. The hierarchical structure of an example document.

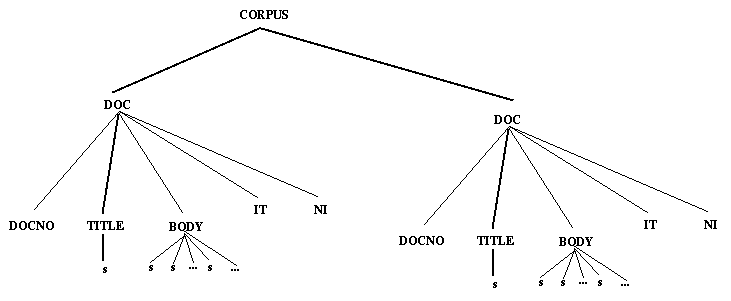

4-2. CORPUS/DOC/TITLE/s

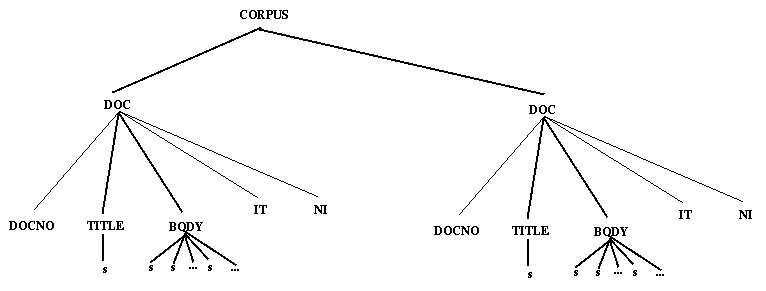

4-3. CORPUS/DOC/.*/s

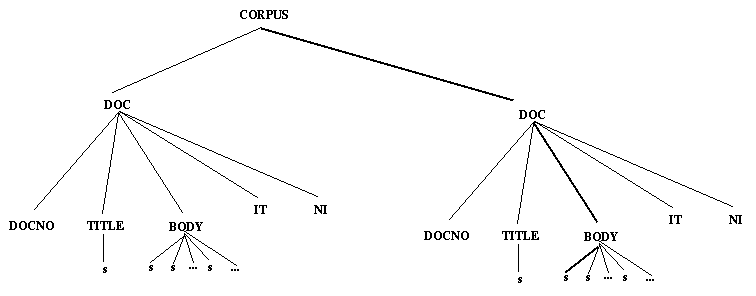

4-4. ./.[1]/.[2]/.[0]

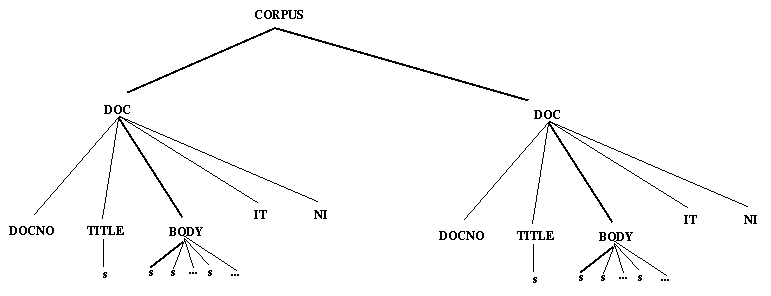

4-5. .*/BODY/s[0]
1. Items and Data
List of Examples
2-1. A tokenised corpus file
2-2. A segmented corpus file
2-3. Using links to reference multiple documents
1. A concise sggrep command line (Unix)
2. A concise sggrep command line (Windows)

I. User guide

Table of Contents
1. Introduction
2. The LT XML Architecture
3. simple.c -- A model LT XML application
4. Query language
5. simpleq.c - A model LT XML application using queries

Chapter 1. Introduction

LT XML

LT XML is an integrated set of XML tools and a developer's tool-kit, including a C-based API It contains everything required to process a very wide range of conformant XML documents. The tools are intended to process all documents which are well formed according to REC-xml-19980210 (this is the latest available definition of XML). Future releases will track the XML standard if and when it changes. We can make no guarantees, but would particularly welcome feedback in cases where the behaviour of our library is found to deviate from that prescribed by REC-xml-19980210 . Such reports will be taken account of in bug-fixes and future releases.

How to read this document

This document assumes that the reader is familiar with SGML and the C programming language. Readers who wish to fully understand the way in which LT XML conforms to the XML 1.0 standard will need to obtain the defining document (REC-xml-19980210 ).The structure of this document is as follows.

  • The chapter headed The LT XML Architecture reviews the data architecture and the system architecture of LT XML

    The first section deals with details of our approach to corpus encoding as applied to XML. This may be of more direct interest to computational linguists and speech technologists than to those concerned with generic applications of XML, but the idea of standoff annotation, which is emphasised in this chapter, is potentially of very wide applicability.

    The section on system architecture gives a broad brush description of the way in which LT XML is constructed.

  • XML utility programs built using the LT XML API documents the user-callable utility programs provided in the LT XML system. We then give an overview of the data structures used to represent SGML structure in the API,

  • The chapter headed Query language gives a description of the LT XML query language which provides a convenient way of referring to elements of an SGML document, followed by an annotated program showing the use of the query language.

  • The next four chapters give a detailed description of the data structures and functions defined in the LT XML API.

Why we use XML

We use XML in the context of collecting, standardising, distributing and using very large text collections (10s and in some case 100s of millions of words in size) for computational linguistics research and development. The LT XML API and associated tools were developed to meet the needs that arise in such work, in the first instance for the creation, elaboration and transformation of markup for such collections (usually called corpora). Not only are the corpora we work with large, they have a very high density of markup (often each word has associated markup). We needed to support pipelined transformation programs running in batch mode (to allow modular, distributed software development) and specialised interactive editors to allow hand correction of automatically added markup.

Given the increasingly common use of XML and SGML as markup languages for text corpora, the question arises as to what is the best way of processing these corpora. For example, the task (common in linguistic applications) of tokenising a raw corpus, segmenting out the words therein and then looking the results up in a lexicon, becomes much more complex for SGML marked-up corpora (as indeed for any marked up corpus). Two main proposals have been suggested. Firstly, an approach which extracts the text data from a marked-up corpus in a form which then can be processed by pipelines of existing line-oriented programs using idiosyncratic markup for communication of structured results between tools. The second approach is that SGML markup should not only be retained and used as the input and output format for tool pipelines, but should also be used for inter-tool communication.

It is this second approach which we have taken in the LT XML library. It has the advantage that SGML is a well defined language which can be used for any markup purpose (as is XML, which is a simplified subset of SGML). Its value is precisely that it closes off the option of a proliferation of ad-hoc markup notations. A second advantage is that it provides a notation which allows an application to access the document at the right level of abstraction, attending to text and markup which are relevant to its needs, and ignoring that which is not. LT XML defines a query language and retrieval functions which make the selection of relevant content a straight forward task.

However, using SGML as the medium for inter-program communication has the disadvantage that it requires the rewriting of existing software, for example, UNIX tools which use a record/field format will no longer work. It is for this reason that we have developed an API library to ease the writing of new programs.

Furthermore, parsing SGML is very hard and slow if you handle the full range of constructions, validate as you go, and provide reasonable error messages and/or error recovery. Fortunately, parsing SGML is easy and fast if you handle only a subset of the full notation, eschewing validation. and parsing of XML is easy in all cases.

Accordingly, the basic architecture underlying our approach is one in which we use a simplified form of SGML, i.e. the Extensible Markup Language (XML) defined by PR-xml-970128. LT XML is closely related to another of our software packages, the Normalised SGML Library (LT NSL) LT-NSL, and shares the same API. LT NSL was developed before XML and has a slightly different definition of what normalised (or simplified) SGML is, and provides a tool for converting arbitrary SGML into a normalised form. LT XML provides support for processing XML documents as well. The LT XML library only supports processing XML documents and does not contain a program to convert SGML to XML (The job can be done using James Clark's SGML normalizer SX (See http://www.jclark.com/xml/)), and such a program would not be difficult to write by adapting mknsg, which is part of the LT-NSL add-on package.

Acknowledgements

This document has been created using SGML and DSSSL. This would not have been possible without the excellent DSSSL support provided by James Clark's Jade DSSSL engine (available at http://www.jclark.com/jade)

We are also very grateful to the Davenport group for providing and maintaining the DocBook DTD (see http://www.ora.com/davenport/) and to Norman Walsh for the the corresponding Modular DocBook Stylesheets (see http://nwalsh.com/docbook/dsssl/index.html ).

Thanks are due to the brave people (both within the Human Communication Research Centre and outside, who dared to use our research software for real tasks. Their feedback and tolerance is of course indispensable for the task of shaking out large and small bugs and infelicities in the implementation and design of the tools. What we distribute remains research software, with all that that implies, but it is largely thanks to our beta-testers and early users that any of it works at all.

Chapter 2. The LT XML Architecture

The Data Architecture

When we specify the data architecture of a corpus we are implicitly answering the question "How is all the information included in an XML coded corpus organised and stored?" It is helpful to spell out our assumptions about data architecture in corpus processing because the design of LT XML API is strongly influenced by these assumptions.

We are committed to using valid XML for all our corpora, but that still leaves a wide range of options as to just how the corpus components are organised as documents, and how those documents are stored as files.

We tend to steer a middle course between a monolithic comprehensive view of corpus data, in which all possible views, annotations, structurings etc. of a corpus component are combined in a single heavily structured document, and a massively decentralised view in which a corpus component is organised as a hyper-document, with all its information stored in separate documents, utilising inter-document pointers.

It is necessary to distinguish between files, which are storage units, XML documents, which may be composed of a number of files by means of external entity references, and hyper-documents, which are linked ensembles of documents.

Compound Annotation and Links

The implication of this is that corpus components can be hyper-documents, with low-density (i.e. above the token level) annotation being expressed indirectly in terms of links. In the first instance, this will be constrained to situations where element content at one level of one document is entirely composed of elements from another document. Suppose, for example, we had already tokenised a corpus file resulting in a single document:

Example 2-1. A tokenised corpus file

...
<p id=p4>
<w id=p4.w1>Time</w>
<w id=p4.w2>flies</w>
<w id=p4.w3>.</w>
</p>
...
The output of a phrase-level segmentation might then be stored as follows:

Example 2-2. A segmented corpus file

...
<p id=p4>
<phr id=p4.ph1 linkend=[d:p4.w1] type=n>
<phr id=p4.ph2 linkend=[d:p4.w2] type=v>
</p>
...

Caution

The notation used for links here is adopted for expository purposes only, should not be taken to imply anything about the behaviour of our tools. See the relevant section of the specification of the knit program, given in knit

Our architecture imposes the requirement that links be able to target anything from single elements to sets of sequences of contiguous elements.

Caution

This capability is available in many proposals for linking mechanisms, including WD-xml-link-970731, but given the draft status of that document we do not at this stage wish to commit to the details of any linking mechanism. We will not gratuitously deviate from decisions made by the XML-LINK working group, and we certainly intend to implement a coherent and useful subset of the linking protocol which eventually emerges, but our primary goal is to support applications in computational linguistics and in corpus processing, so we will not necessarily track every detail.

Note that although the example above shows links to only one document, it is possible to link to several documents, e.g. to a token document and a lexicon document:

Example 2-3. Using links to reference multiple documents

...
<word>
<source linkend=[d:p4.w1]>
<lex linkend=[x:en.lex.40332]>
</word>
...

It follows from this that the lowest level of processing, tokenisation, will establish the base level of elements on the basis of which all further annotation will be based in the data architecture. In other words, up through tokenisation, processing will result in complete self-contained documents, with added information literally incorporated in the file stream. Note however that the proposed architecture is recursive, in that e.g. sentence-level segmentation could be expressed in terms of links into the phrase-level segmentation as presented above.

Versions

The data architecture needs to address not only multiple levels of annotation but also alternative versions at a given level. Since any linking mechanism will exploit XML's entity facilities to locate target documents, we can rely on these facilities in designing our versioning mechanism.

Caution

REC-xml-19980210 section 4.2.2 specifies the existence of PUBLIC and SYSTEM identifiers, and requires that system identifiers are URIs, but allows systems to ignore public identifiers. That is what LT XML does. We rely on system identifiers and relative URIs to achieve the goal. Arguably the same effect could be achieved more elegantly using an external mechanism for resolution of public identifiers, such as an SGML catalog.

The System Architecture

When we use the term system architecture we are referring to the organisation of the software components which implement the LT NSL API. Our goal is to keep the API as stable as possible, but major developments in the SGML and XML world, not least REC-xml-19980210 mean that we have needed to make major changes under the hood. There have also been some additions and changes in LT XML API, some of which may impact upon user programs. But we have tried to keep this changes as minor and as transparent as possible, making the new functionality available without unnecessary disruption.

The system has three layers:

  • XML applications. These are tools which use the LT XML API. We provide a variety of example applications with the distribution. These applications are designed to cover some commonly occurring needs, but we anticipate that most users will sooner or later wish to build special purpose tools of their own. We recommend that you use one of the sample applications as a model for your own efforts.

  • The LT XML API layer. This is a collection of C functions and types which form a framework for generic SGML and XML processing tasks. As mentioned above, this has been relatively stable since 1.1. This interface was designed before XML existed, and has been honed and tested in successive releases of the LT NSL framework. Along with facilities similar to those proposed for SAX and DOM, the interface provides both a query language (see Query language). and high-level abstractions for input and output of SGML streams (see Document type information for XML documentsSince XML documents need not have explicit DTD information, the library has the ability create appropriate stand-in data structures as needed. These are used to record information about the elements and attributes which are encountered in the course of processing the document. In contrast to conventional DTDs, these data structures contain information which will be updated as new elements arrive.Because of this incremental update, coupled with the possibility that multiple documents may use the same NSL_Doctype structure, it is as well to pay careful attention to the possibility that information collected early in the processing of a stream may have changed at later points in its processing.).

    Our intention is that programs which use the public interface defined for 1.1 should continue to work as before. Many of the XML applications in the distribution rely only on the public interface, but some (unfortunately) make direct use of functions internal to the LT XML library.

    Note: Do as we say, not as we do. If you find yourself wanting to use functions which are not in the public API, please resist the temptation. If that doesn't work, get in touch, and we will consider extending the API in the next release. Or you can just go ahead and use the function, running the risk that we will remove or modify the function in some future release, breaking your program. In particular, this caveat implies that you should be discriminating about which of the provided applications you use as your model.

    The LT XML API involves not only an event level abstraction similar to SAX and an element level abstraction similar to DOM, but also functions and types (notably ItemParse) which allow the programmer to shift between the two abstractions. As any amphibian will tell you, the ability to shift between two distinct modes of life gives access both to great opportunities and to great dangers.

    In SGML processing the main opportunity is the gain in speed which is attainable by using the (highly efficient) event level interface to scan huge corpora for linguistically or technologically interesting sub-parts, then using the more convenient element level interface when the time comes to analyse the sub-parts which are returned. This frees us from the need to speculatively read large portions of document into memory.

    The downside of the amphibian experience is the added complexity occasioned by the need for a dual capability, and the risk that one is less well adapted to either environment than are the full-time denizens of either land or sea. The second difficulty is not really relevant to our software, which achieves good performance at both the event level and the element level, but the need to switch levels has certainly led to an increment in complexity over a pure (SAX-like) event level interface or a pure (DOM-like) element level interface. When reading the code (which you are free to do if you choose to) it is a considerable aid to understanding if you recall that efficient level switching was part of the design specification of the library.

  • The final layer is an XML parser, called RXP, which is also available as a standalone component. This is an efficient, configurable XML parser (which aims to conform to REC-xml-19980210 ) and forms the bottom layer of our library. The parser itself is highly configurable, but does not provide a query language or the high-level input-output abstractions of LT XML API. The system can be configured either as an XML processor, whose main design goal is strict observance of the stipulations of PR-xml-970128 or as a more relaxed (and in our view much more useful) processor, which can, inter alia, pass up to the LT XML API the information which is needed by that layer.

Character encodings

LT XML 1.2 is Unicode capable. It can be compiled in 8- or 16-bit character mode. In 8-bit mode, the internal encoding is a superset of ASCII, in which all characters above 0xa0 are treated as name characters. Characters are not translated on input or ouput. This means that well-formed documents in ASCII and ISO-8859-N should work. In 16-bit mode, the internal encoding is UTF-16 and the supported input encodings are ISO-8859-N (1 <= N <= 9), UTF-16 and UTF-8.

Document type information for XML documents

Since XML documents need not have explicit DTD information, the library has the ability create appropriate stand-in data structures as needed. These are used to record information about the elements and attributes which are encountered in the course of processing the document. In contrast to conventional DTDs, these data structures contain information which will be updated as new elements arrive.

Because of this incremental update, coupled with the possibility that multiple documents may use the same NSL_Doctype structure, it is as well to pay careful attention to the possibility that information collected early in the processing of a stream may have changed at later points in its processing.

Chapter 3. simple.c -- A model LT XML application

This model application program (simple) has been written to demonstrate the use of the LT XML API. The program reads an XML file containing paragraph and word markup. It assumes that each word element has an attribute which contains part of speech (POS) information. The program then outputs a modified version of the input file where the text of each word element has been replaced by some text which shows the word and the POS tag associated to the word. For example, if the input file looks like:

<?xml version='1.0' encoding="ISO-8859-1" standalone="yes"?>
<!DOCTYPE FILE [
<!ELEMENT FILE (HEADER,TEXT)>
<!ELEMENT HEADER (#PCDATA)>
<!ELEMENT TEXT  (P*)>
<!ELEMENT P      (W*)>
<!ELEMENT W     (#PCDATA)>
<!ATTLIST W TYPE CDATA #REQUIRED>
] >
<FILE>
<HEADER>blah blah</HEADER>
<TEXT>
<P>
<W TYPE='det'>The</W>
<W TYPE='nn'>cat</W>
</P>
</TEXT>
</FILE>
then the output file will look like:
<?xml version='1.0' encoding='ISO-8859-1' standalone='yes'?>
<!DOCTYPE FILE [
<!ELEMENT FILE (HEADER,TEXT)>
<!ELEMENT HEADER (#PCDATA)>
<!ELEMENT TEXT  (P*)>
<!ELEMENT P      (W*)>
<!ELEMENT W     (#PCDATA)>
<!ATTLIST W TYPE CDATA #REQUIRED>
]>
<FILE>
<HEADER>blah blah</HEADER>
<TEXT>
<P>
<W TYPE='det'>The/det</W>
<W TYPE='nn'>cat/nn</W>
</P>
</TEXT>
</FILE>
Simple is not intended to be a particularly useful program, rather to be an example of the use of the LT XML API. The program can be called as follows:
simple [options] nsgmlfile
Allowed options (all of which are optional) are:

-u base-url

Use this URL as the base URL when resolving relative URLs. The value specified for this argument is passed to SFFopen or a similar stream creation function.

-d doctype

Use the doctype found in this file in preference to anything on the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb file

-h

Print usage information for the program.

-e

Do not expand entities.

-t

name of attribute containing the POS information (default TYPE)

-w

name of word element (default W)

-f

print format for output words and their POS tags (default "%s/%s")

The annotated code of the simple program is as follows:

#include "nsl.h"

Include header file for LT XML public interface.

#include "ctype16.h"

Include header file for 16-bit character functions. These will be identical to the usual 8-bit functions if LT XML is compiled in 8-bit mode.

#include "string16.h"

Include header file for 16-bit string functions.These will be identical to the usual 8-bit functions if LT XML is compiled in 8-bit mode.

#include "lt-memory.h"

Non-public header file included to get sfree. Probably bad style, since sfree is almost indistinguishable from free.

#include "stdio16.h"

Analogues of the usual stdio.h functions but respecting the 8-bit, 16-bit character dichotomy.

static void usage(int exitval)
{
    fprintf(stderr, "usage: simple [-he]
                                   [-d ddb-file]
                                   [-u base-url]
                                   [-t type-attr]
                                   [-w word-element]
                                   [-f format]
                                   [input-file]\n");
    exit(exitval);
}

The usage message

int main(int argc, char **argv) {
  NSL_Bit *bit;
  NSL_File inf=NULL, outf;
  NSL_Doctype dct=NULL;
  const Char *paraLabel,*wordLabel,*textLabel,*label,*tagAttr,*tagVal=NULL;
  char *ptr;
  Char buf[100];
  int in_para=0,in_text=0,arg=1,in_word=0,len;
  char *s;
  NSL_Common_Options *options;

Various variables. Earlier releases did not make the distinction between 8- and 16-bit characters. The Char type is either 16-bit or 8-bit, depending on the compilation switches used to build LT XML. char8 is always 8-bit, char16 is always 16-bit, and char is the ordinary character type of the C compiler you are using. In practice you will use Char for most program internal character strings, and char8 for most parameters passed in from a command line.

  char* targ= (char *)"TYPE";

Default name of attribute carrying tag -- set with -t

  char* warg= (char *)"W";

Default name of word element -- set with -w

  const char* textFormat="%S/%S";

Format string for word, tag -- set with -f

  NSLInit(0);

Initialise the LT XML SGML API. Programs should always do this before calling any other API function. This includes NSLGetoptions. In our experience mistakes involving this function are the most common source of hard-to-trace bugs in LT XML programs.

  options = NSLGetoptions(&argc, argv, "hedu", usage);
  dct = options->doctype;

Process the standard command line arguments -h, for usage information,-e for user-specified output encoding, -d for a user-specified XML doctype (which can be provided in several forms, because of the possibility that we are dealing either with XML or nSGML), and -u for a user specified base URL (which will be used to resolve relative URLs in the processed document or documents). Store the information which has been recovered in the options structure.

  for(arg = 1; arg < argc; arg++)
  {
      if(argv[arg][0] != '-')
	  break;
      for(s = &argv[arg][1]; *s; s++)
	  switch(*s)
	  {
	  case 't':
	      if(arg+1 == argc)
		  usage(2);
	      targ=argv[++arg];
	      break;
	  case 'w':
	      if(arg+1 == argc)
		  usage(2);
	      warg=argv[++arg];
	      break;
	  case 'f':
	      if(arg+1 == argc)
		  usage(2);
	      textFormat=argv[++arg];
	      break;
	  default:
	      usage(2);
	  }
  }

Process tool-specific arguments for format string,name of element and attribute to use in construction of output.

  switch(argc - arg)
  {
    case 0:
	inf = SFFopen(stdin, dct, options->read_type, options->base_url);
	break;
    case 1:
	inf = SFopen(argv[arg], dct, options->read_type);
	break;
    default:
	usage(2);
	break;
  }

If there is a remaining command line argument, interpret it as an input file name, otherwise open standard input as an XML stream. In either case we use the (possibly NULL) NSL_Doctype obtained from option processing. Passing a NULL doctype tells the system to (directly or indirectly) obtain the document type information by reading data from the stream which has just been opened. By default LT XML handles administrative details such as document type information, while user programs need concern themselves only with the content of documents.

You may wonder exactly when the document type information is read. In previous releases this happened when at file opening time, which is sometimes very inconvenient. In the current version a wider range of behaviours is available, controlled by flags passed to SFFopen or SFopen. See the function documentation for details of exactly what happens. The good news is that you should not need to change programs written to the earlier API, the even better news that, if you want, you can now get access to representations of document type data, unexpanded XML entities, processing instructions, and so on. See the function documentation to learn how to do this.

  dct=DoctypeFromFile(inf);

We need the document type information from the input file in order to open the output file with the same DTD

  if (DocumentIsNSGML(dct)) {
    /* need upper case for attribute lookup */
    ptr=targ;
    while (*ptr) {
      *ptr=Toupper(*ptr);
      ptr++;
    };
  };
    /* need upper case for tag lookup */
    ptr=warg;
    while (*ptr) {
      *ptr=Toupper(*ptr);
      ptr++;
    };
  };

If we're reading nSGML, then case-folding upwards may have happened, so we need to case-fold our search strings. Toupper is a version of the standard toupper which respects the 16-bit or 8-bit nature of the internal Char data type.

  outf=SFFopen(stdout, dct, options->write_type, "stdout");

Use the NSL_Doctype of the input file to establish the document type information of the output file.

  textLabel=ElementUniqueName8(dct,"TEXT",4);
  paraLabel=ElementUniqueName8(dct,"P",1);
  wordLabel=ElementUniqueName8(dct,warg,0);
  tagAttr=AttrUniqueName8(dct,targ,0);

Get the unique name of the elements and the tag we care about. In the first two cases we provide the length of the strings used. In the last two cases we specify 0 as the length, with the effect that the true length will be measured by the called function.

Note that we are using the versions of these functions which consume 8-bit characters.

  while ((bit=GetNextBit(inf))) {

Loop round reading bits of the XML input text. A bit is either a single piece of text lacking SGML markup, or a single piece of SGML markup. (Usually, as here, markup types are start tag, end tag or processing instruction, but you can obtain a richer range of bits including comments and unexpanded entities if you choose to specify this in the flags passed to SFFopen or one of its relatives).

The body of the ensuing loop is a type-driven dispatch on the returned bit.

    switch (bit->type) {
    case NSL_start_bit:

Case 1: We have found the start tag for an SGML element. Note that the item value of this bit is of type NSL_inchoate, meaning that unless you call ItemParse on it, it has just the start tag information, and no contents. If the potential contents are very large (for example, if the start tag is <BNC> and the document is indeed a substantial subset of the British National Corpus)this is an advantage, since you don't need to pull the whole thing into memory.

But when you do want the contents in memory, you should either call ItemParse before relying on the availability of the contents, or use GetNextItem in preference to GetNextBit. This reads complete subtrees into memory, assuming that size will not be a problem.

A third alternative, which in many ways offers the best of both worlds, is to use the still higher level query interface via GetNextQueryItem. The query processor is smart enough to search large corpora without necessarily reading large enclosing elements into program memory.

      if ((label=bit->label)==textLabel) {

Note that we're inside a <TEXT> element

	in_text=1;
      } else if (in_text &&
	       label==paraLabel) {

note that we're inside a paragraph (<P>) inside <TEXT>/para>

	in_para=1;
      } else if (in_para &&
	       label==wordLabel) {

We have found a word inside a text paragraph. Note this fact and save the POS tag stored on the item associated with the current bit. by looking up the tag attribute.

	in_word=1;
	tagVal=Strdup(GetAttrStringVal(bit->value.item,
				       tagAttr));
      }

Fall through to the next case (empty bits) because the printing code works for both cases. The associated empty item can't have text content, so it isn't worth inspecting it either for relevant attributes or to check their element name.PrintItem is smart and will print only a start tag for inchoate items, and will do the right thing for empty elements. That is, it prints a start tag (<foo>) if we are working with an item from a nSGML document, an empty tag (<foo/>) in the case of an XML document. In LT XML 1.2 items contain references to the document type of their originating document, mainly because of PrintItem's need to know how they should be printed.

    case NSL_empty_bit:

      PrintItem(outf, bit->value.item);
      break;
    case NSL_text_bit:
      if (in_word) {
We strip trailing whitespace. Not the use of Strlen and is_xml_whitespace, which is needed because we may be dealing with 16-bit characters
	len=Strlen(bit->value.body);
	while (is_xml_whitespace(bit->value.body[len-1])) {
	  bit->value.body[--len]='\000';
	}
Now out the word and the POS tag(s). We use PrintText to keep the file output state up-to-date.
	Sprintf(buf, InternalCharacterEncoding, textFormat,
		bit->value.body,tagVal);
	sfree((Char *)tagVal);
	PrintText(outf,buf);
      } else {
We have text in some other context -- print it unchanged.
	PrintText(outf, bit->value.body);
      }
      break;
Final case. We have found an end tag, so we need to update the variables which keep track of whether we are in a paragraph or in a word. We make the (probably correct) assumption that words do not nest, and the (very possibly incorrect) assumption that paragraphs don't either. These assumptions make it OK to use boolean variables to track context. At the cost of some extra complexity we could have relaxed these assumptions, using a stack to keep track of context.
    case NSL_end_bit:
      if (in_para) {
	if (bit->label==paraLabel) {
	  in_para=0;
	} else if (bit->label==wordLabel) {
	  in_word=0;
	}
      }
We always print end tags when we see them. We don't handle processing instructions in this code, although we could have added an extra case. The defensive use of the macro SHOULDNT, which prints a message and causes the program to exit, is OK in this one-shot tool, but would be inappropriate in a program intended as a server.
      PrintEndTag(outf,bit->label);
      break;
    default:
      SHOULDNT;
    }
    FreeBit(bit);

Bits are not themselves dynamically allocated by GetNextBit, but they may contain references to dynamically allocated data, in particular an enclosing NSL_Item. We call FreeBit to ensure that deallocation of this data proceeds in an orderly fashion.

  }

  /* at the very end we need . . . */
  SFclose(outf);
  return 0;
}

Chapter 4. Query language

Queries

NSL queries are a way of specifying particular nodes in the SGML document structure. Queries are coded as strings which give a (partial) description of a path from the root of the SGML document (top-level element) to the desired SGML element(s). For example, the query

".*/TEXT/.*/P"
describes any <P> element which occurs anywhere (at any level of nesting) inside a <TEXT> element which, in turn, can occur anywhere inside the top-level document element.

A query is a sequence of terms separated by /, where each term describes an SGML element. It is no accident that they resemble Posix pathnames. The syntax of queries is as follows:

  <query>  := <term> ( '/' <term> )*
  <term>   := <bTerm> '*'?
  <bTerm>  := <aTerm> ( '|' <aTerm> )*
  <aTerm>  := <GI> <cond>?
  <GI>     := <elementName> | '.'
  <cond>   := '[' ( <index> | <atests> |
  <index> <atests> ) ']'
  <index>  := <number>
  <atests> := <atest> ( ' ' <atest> )*
  <atest>  := <aname> ( <operator> <aval> )?
  <operator>  := [ '=' | '!=' | '~' | '!~' | '<' | '!<' | '>' | '!>' | '?' | '!?' ]
That is, a query is a sequence of terms, separated by ``/''. Each term describes either an SGML element or a nested sequence of SGML elements. An item is given by an SGML element name, optionally followed by a list of attribute specs (in square brackets), and optionally followed by a ``*''. An item which ends in a ``*'' matches a nested sequence of any number of SGML elements, including zero, each of which match the item without the ``*''. For example ``P*'' will match a <P> element, arbitrarily deeply nested inside other <P> elements. The special GI ``.'' will match any SGML element name. Thus, a common way of finding a <P> element anywhere inside a document is to use the query ``.*/P''. Aname (attribute name) and aval (attribute value) are as per SGML . A term which consists of a number of aTerms separated by '|' will match anything that any one of the aTerms match

Caution

On Windows 95 systems one should note that this is the vertical bar character '|' (decimal 124) and not the split vertical bar character '�'(decimal 166).

A condition with an index matches only the index'th sub-element of the enclosing element. Index counting starts from 0, so the first sub-element is numbered 0. Conditions with indices and atests only match if the index'th sub-element also satisfies the atests. Attribute tests are not exhaustive, i.e. P[rend='it'] will match <P n='45' rend='it'> as well as <P rend='it'>. They will match against both explicitly present and defaulted attribute values, using string equality. Bare anames are satisfied by any value, explicit or defaulted. Matching of queries is bottom-up, deterministic and shortest-first.

A number of operators are defined to compare the values of attributes against constant strings in the query, these are:

=

string equality

!=

string inequality NB if -r is specified as option to sggrep, then = and != mean ~ and !~ respectively

~

regular expression matching

!~

negated regular expression matching

<

numeric less than ( non-numbers are treated as zero, as per atof)

!<

numeric not less than ( means >= )

>

numeric greater than

!>

numeric not greater than ( means <= )

?

user defined comparison function

!?

negated user defined comparison function

For user defined comparison function we use the function which is the value of the global variable

boolean (* LTNSL_User_defined_comparison)
           (const char* ival, const char* qval) = NULL;

The function call *LTNSL_User_defined_comparison(ATTR_VALUE, QUERY_VALUE) should return true if ATTR ? VALUE is true, else false. To use this user defined operator you need to write your own program which calls the API; the '?' operator is not meaningful to the sggrep program.

Note the difference between numeric and string equality e.g. the query ".*/A[ x = 0 ]" does not find <a x=foo/> , because we do string equality, but ".*/A[ x !> 0 x !< 0 ]" would find it, since the numeric value of foo is zero when converted by atof, and hence is neither less than nor greater than zero.

Examples of LT XML queries

In this section we show some examples of queries, assuming the following DTD.

<!ELEMENT CORPUS (DOC+)>
<!ELEMENT DOC    (DOCNO,TITLE,BODY,IT,NI) >
<!ELEMENT DOCNO  (#PCDATA) >
<!ELEMENT TITLE  (s+) >
<!ELEMENT BODY   (s+) >
<!ELEMENT IT     (#PCDATA) >
<!ELEMENT NI     (#PCDATA) >
<!ELEMENT s       (#PCDATA|w)* >
<!ELEMENT w      (#PCDATA) >
<!ATTLIST BODY id ID #IMPLIED >
<!ATTLIST IT   id ID #IMPLIED>
<!ATTLIST w    rend CDATA #IMPLIED>

The SGML structure of a sample document which uses this DTD is shown in Figure 4-1

Figure 4-1. The hierarchical structure of an example document.

The query CORPUS/DOC/TITLE/s means all s elements directly under TITLE's directly under DOC. This is shown graphically in Figure 4-2. The LT XML query functions return the indicated items one by one until the set denoted by the query is exhausted.

Figure 4-2. CORPUS/DOC/TITLE/s

The query CORPUS/DOC/./s means all s's directly under anything directly under DOC, as shown in Figure 4-3.

Figure 4-3. CORPUS/DOC/.*/s

The query CORPUS/DOC/.*/s means all s's anywhere underneath DOC. .* matches all finite sequences of . For the example document structure this means the same as CORPUS/DOC/./s, but in more nested structures this would not be the case. An alternative way of addressing the same sentences would be to specify .*/s as query. We also provide a means of specifying the Nth node in a particular local tree. So the query ./.[1]/.[2]/.[0] means the 1st element below the 3rd element below the 2nd element in a stream of elements, as shown in Figure 4-4.

Figure 4-4. ./.[1]/.[2]/.[0]

This is also the denotation of the query CORPUS/DOC[1]/BODY[2]/s[0] assuming that all our elements are s's under BODY under DOC, which illustrates the combination of positions and types. The query .*/BODY/s[0] refers to the set of the first elements under any BODY which are also s's. The referent of this is shown in Figure 4-5.

Figure 4-5. .*/BODY/s[0]

Additionally, we can also refer to attribute values in the square brackets: .*/s/w[0 rend=lc] gets the initial elements under any <s> element so long as they are words with rend=lc (perhaps lower case words starting a sentence).

The query language is designed to provide a small set of orthogonal features. Queries which depend on knowledge of prior context, such as ``the third element after the first occurrence of a sentence having the attribute quotation'' are not supported. It is however possible for tools to use the lower-level API to find such items if desired. The reason for the limitation is that without it the search engine might be obliged to keep potentially unbounded amounts of context. If this proves frustrating, see sgrpg, which provides ways of constructing more complex queries. If this is not enough, you can always write your own programs using the LT XML API.

Chapter 5. simpleq.c - A model LT XML application using queries

The following program simpleq.c shows how the LT XML API query functions can be used. It does not exercise all the facilities, but does enough to be worth explaining.

#include "nsl.h"

Include header file for LT XML public interface.

#include "ctype16.h"

Include header file for 16-bit character functions. These will be identical to the usual 8-bit functions if LT XML is compiled in 8-bit mode.

#include "string16.h"

Include header file for 16-bit string functions.These will be identical to the usual 8-bit functions if LT XML is compiled in 8-bit mode.

#include "lt-memory.h"

Non-public header file included to get sfree. Probably bad style, since sfree is almost indistinguishable from free.

static void usage(int exitval)
{
    fprintf(stderr, "usage: simpleq [-he] "
                                    "[-d ddb-file] "
                                    "[-u base-url] "
                                    "[-t type-attr] "
                                    "[-w word-element] "
                                    "[-f format] "
                                    "[input-file]\n");
    exit(exitval);
}

The usage message

int main(int argc, char **argv) {
  NSL_File inf=NULL, outf;

Input and output files. Crucial to initialize inf to NULL, since this will be relied on when file is opened.

  NSL_Doctype dct=NULL;

It used to matter that dct was NULL, but this variable is now set as part of the standard option processing.

  NSL_Query qu;
  NSL_Item *item;
  const Char *tagAttr, *tagVal=NULL;
  char8 qustr[100], *ptr;
  Char buf[100];
  int arg,len;
  char *s;
  NSL_Common_Options *options;

Various variables. Note that query strings have element type char8, but that buffers have element type Char, which is 16-bit or 8-bit depending on the compilation switches when LT XML was built. This distinction is new in LT XML 1.2.

  char* targ= (char *)"TYPE";

Default name of attribute carrying tag -- set with -t

  char* warg= (char *)"W";

Default name of word element -- set with -w

  const char* textFormat="%S/%S";

Format string for word, tag -- set with -f

  NSLInit(0);

Initialise the LT XML SGML API. Programs should always do this before calling any other API function. This includes NSLGetoptions. In our experience mistakes involving this function are the most common source of hard-to-trace bugs in LT XML programs.

  options = NSLGetoptions(&argc, argv, "hedu", usage);
  dct = options->doctype;

Process the standard command line arguments -h, for usage information,-e for user-specified output encoding, -d for a user-specified XML doctype (which can be provided in several forms, because of the possibility that we are dealing either with XML or nSGML), and -u for a user specified base URL (which will be used to resolve relative URLs in the processed document or documents). Store the information which has been recovered in the options structure.

  for(arg = 1; arg < argc; arg++)
  {
      if(argv[arg][0] != '-')
	  break;
      for(s = &argv[arg][1]; *s; s++)
	  switch(*s)
	  {
	  case 't':
	      if(arg+1 == argc)
		  usage(2);
	      targ=argv[++arg];
	      break;
	  case 'w':
	      if(arg+1 == argc)
		  usage(2);
	      warg=argv[++arg];
	      break;
	  case 'f':
	      if(arg+1 == argc)
		  usage(2);
	      textFormat=argv[++arg];
	      break;
	  default:
	      usage(2);
	  }
  }

Process tool-specific arguments for format string,name of element and attribute to use in construction of output.

  switch(argc - arg)
  {
    case 0:
	inf = SFFopen(stdin, dct, options->read_type, options->base_url);
	break;
    case 1:
	inf = SFopen(argv[arg], dct, options->read_type);
	break;
    default:
	usage(2);
	break;
  }

If there is a remaining command line argument, interpret it as an input file name, otherwise open standard input as an XML stream. In either case we use the (possibly NULL) NSL_Doctype obtained from option processing. Passing a NULL doctype tells the system to (directly or indirectly) obtain the document type information by reading data from the stream which has just been opened. By default LT XML handles administrative details such as document type information, while user programs need concern themselves only with the content of documents.

You may wonder exactly when the document type information is read. In previous releases this happened when at file opening time, which is sometimes very inconvenient. In the current version a wider range of behaviours is available, controlled by flags passed to SFFopen or SFopen. See the function documentation for details of exactly what happens. The good news is that you should not need to change programs written to the earlier API, the even better news that, if you want, you can now get access to representations of document type data, unexpanded XML entities, processing instructions, and so on. See the function documentation to learn how to do this.

  dct=DoctypeFromFile(inf);

We need the document type information from the input file in order to open the output file with the same DTD

  if (DocumentIsNSGML(dct)) {
    /* need upper case for attribute lookup */
    ptr=targ;
    while (*ptr) {
      *ptr=Toupper(*ptr);
      ptr++;
    };
  };

If we're reading nSGML, then case-folding upwards may have happened, so we need to case-fold our test string. Toupper is a version of the standard toupper which respects the 16-bit or 8-bit nature of the internal Char data type.

  outf=SFFopen(stdout, dct, options->write_type, "stdout");

Use the NSL_Doctype of the input file to establish the document type information of the output file.

  strcpy8(qustr,".*/TEXT/.*/P/.*/");
  strcat8(qustr, warg);
  qu=ParseQuery8(dct,qustr);
  tagAttr=AttrUniqueName8(dct,targ,0);

Construct a query, which looks for words anywhere inside paragraphs anywhere inside a text, and look up the unique name for the tag attribute for subsequent use.ParseQuery handles case-folding if necessary. It uses the passed-in document type to determine whether we have nSGML input.

In the next section we read items of the SGML input text. When we find an item which matches the query we execute the body of the while loop. Items which do not match are automagically written to the output stream by GetNextQueryItem, Each call of GetNextQueryItem creates a new item, which it is the responsibility of the programmer to free once it has been used.

  while( ( item=GetNextQueryItem(inf, qu, outf ) ) ) {
read the item
    Char *word=(Char*)item->data->first;
    len=Strlen(word);
    while (is_xml_whitespace(word[len-1])) {
      word[--len]='\000';
    }

When we are inside the text of a word element,strip off trailing whitespace.

    tagVal=GetAttrStringVal(item,tagAttr);

Look up the value of the attribute that carries tag information for this item.

    Sprintf(buf,InternalCharacterEncoding,textFormat,word,tagVal);

construct a string representing the word and its tag.

    item->data->first = buf;

Install the new string as the item's content.

    PrintItem(outf, item);

Now print the item. Note that we use PrintItem to write the modified item to the output file. This is in order to keep the XML output state up-to-date. Note that the code here assumes that each word element contains only text and no embedded SGML markup. More complex code could cope with this more complex possibility.

    item->data->first = 0;

If we were to leave our statically allocated buffer as a child of the item, FreeItem would try to recursively free it. The consequences of this are undefined, but probably disastrous on at least some of the platforms that we support. So we break the link.

    sfree(word);

Conversely, the storage for word was allocated by GetNextQueryItem, so we need to free it in the appropriate way by calling sfree.

Caution

As previously mentioned, sfree is not part of the LT XML API. An alternative solution, which is the one that we would probably adopt in practice, is to graft back word as child of item before calling FreeItem

    FreeItem(item);
  } /* end while */

Each item is freed.

  SFclose(outf);
  return 0;
}

At the very end we need to close the output XML stream. We don't bother to explicitly free the NSL_Query or to close the input XML stream, since cleanup will be handled adequately when the program exits. A long-running server program aiming to provide the same service would, as usual, need to be more precise in its handling of the boundary conditions. Examples of how to do this are provided in the function documentation.

II. LT XML reference

This section of the manual is a reference document for the tools (XML utility programs built using the LT XML API), types (Type reference) and functions (subsequent sections, starting with Initialising LT XML).

The function reference sections include descriptions of all the functions exposed in the LT XML API. If not otherwise specified, those functions below which return a pointer, will return a NULL pointer in case of error, but see below.

Table of Contents
I. XML utility programs built using the LT XML API
II. Type reference
III. Initialising LT XML
IV. Opening and closing input and output streams
V. Document type information
VI. File positioning
VII. URL Utilities
VIII. Reading SGML
IX. Queries
X. Printing
XI. Attributes
XII. Creating LT XML data structures
XIII. Copying LT XML structures
XIV. Structure navigation and Modification
XV. Freeing LT XML data structures
XVI. Accessing the DTD
XVII. Other functions
XVIII. Manipulating Attributes
XIX. Miscellaneous

I. XML utility programs built using the LT XML API

The tools in the bin directory are:

  • a program for querying XML files, sggrep.

  • a tool for linking elements of hypertext documents. knit This is based on WD-xml-link-970731 and not on the very recent newer versions of XML LINK.

  • a suite of tools for linguistic annotation, including a tokeniser (sgmltoken), a toy segmenter (sgmlseg actually a perl program) and a sentence boundary finder (sgmlsb);

  • a simple version (element structure, text and limited attribute information only) of nsgmls called pesis

  • a program to output all the text (and none of the markup) from an XML file,textonly;

  • two illustrative applications, simple and simpleq , whose source code (in src/appl/simple.c and src/appl/simpleq.c) which intended as a starting point for application developers.

    Note: The C source files in the data directory, used for testing, also demonstrate some simple uses of the LT XML API;

  • a utility program nslshowddb for printing .ddb files.

    Note: LT XML does not provide a means for generating .ddb files. This is part of the functionality of our toolkit, which also allows normalization of arbitrary SGML files. The component is available as an add-on package. We make this division primarily in order to improve the portability of the XML component of the toolkit.

  • two programs sgmltrans and sgrpg, which provide alternative methods of subsetting and transforming XML files into alternative formats;

  • a program sgcount for counting the amount of markup in a file;

  • a program sgsort for sorting sub-trees of SGML documents;

  • a program xmlnorm for trivial normalisation of XML files, useful for checking well-formedness.

Finally, there are other SGML-aware programs which have been developed by the Language Technology Group, which make use of the LT XML library, for example a partial parser, a part-of-speech tagger and text indexing software. Our SGML and tokenisation technology was also heavily used in our high-scoring entry to the named-entity recognition subtask of the MUC-7 Message Understanding Conference.

Contact the manager of the Language Technology Group directly for further details.

Table of Contents
sggrep — works like the grep program in searching a file for regular string expressions. However, unlike grep , it is aware of the tree structure of XML files.
sgmltrans — translate XML files into another format.
sgrpg — systematically transform input document to changed output document
sgcount — count elements in an XML file.
knit — process compound documents using hyperlinks
unknit — create hyperlinked files from XML files
sgmltoken — Text tokenization.
sgmlseg — simple segmenter
sgmlsb — Sentence boundary marker.
pesis — Trivial version of James Clark's sgmls.
xmlnorm — XML normalizer.
textonly — strip out markup
simpleq — example program.
simple — example program.
sgsort — sort XML elements
nslshowddb — display document type information

sggrep

Name

sggrep -- works like the grep program in searching a file for regular string expressions. However, unlike grep , it is aware of the tree structure of XML files.

Synopsis

sggrep [-h] [-u base-url] [-d doctype] [-v] [-n] [-r] [-m mark-query] [-a element-name] [-q query] [-s sub-query] [-t regexp] [--] [inputs...]

-u base-url

Use this URL as the base URL when resolving relative URLs. The value specified for this argument is passed to SFFopen or a similar stream creation function.

-d doctype

Use the doctype found in this file in preference to anything on the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb file

-h

Print usage information for the program.

-e

Do not expand entities.

-n

Don't force a newline between output matches. The default is to print a newline between each match.

-v

Invert sense of sub-query+regexp, see below for details.

-q query

Pattern on items to select, basically path of terms separated by /, each term representing a sequence of SGML elements. See section Query language for the details of what a query looks like.

-r

Attribute values in queries are regular expressions.

-s sub-query

If present, selects sub-elements of query-selected item for regexp to match.

-t regexp

Regular expression to match against text directly contained in query-selected item (if no sub-query) or in any sub-query selected sub-element of query-selected item. If empty (i.e. '' on Unix or "" in a Windows console command processor) matches anything, including empty elements, indeed this is the only way to get empty elements if required.

Note: sggrep supports two different command syntaxes. The one given above (new in LT XML 1.2) trades brevity for explicitness. The alternative allows very concise expression of common needs, especially when used in pipelines.

sggrep [-h] [-u base-url] [-d doctype] [-v] [-n] [-r] [-m mark-query] [-a element-name] query [ sub-query] [ regexp] [--] [inputs...] [< input] [> output]

The concise version dispenses with the key letters for the three query arguments (previously addressed by -q,-s and -t). This is very convenient in pipelines, like:

Example 1. A concise sggrep command line (Unix)

zcat nt.xml.gz |sggrep '.*/CHAPTER/V' '.*/PARA' Comforter | sgcount

or (under a Windows console command processor, where the quote character is ")

Example 2. A concise sggrep command line (Windows)

zcat nt.xml.gz |sggrep ".*/CHAPTER/V" ".*/PARA" Comforter | sgcount

When using the second, terse, form, the -- is required unless both regexp and/or sub-query are explicitly provided. If not, the program might treat input file names as part of the query.

We continue to support the brief syntax for backward compatibility and
and for the benefit of those who greatly value brevity. If you
use the
Description

  Since the output of sggrep is XML, it can be used as
  input to another call of sggrep, thus allowing more
  complex queries to be built up in stages.
Brief summary of query syntax
Terms separated by /

<term>:=<GI><cond>?'*'?
<GI>:=<elementName>|'.'
<cond>:='['<index>|<atests>|<index> <atests>']'
<index>:=<number>
<atests>:=<atest>(' '<atest>)*
<atest>:=<aname>( ['='|'!=']
<aval> )?
     Aname and aval are as per SGML, except that if the -r flag is given,
     aval are regular expressions.
     A GI of . matches any tag.  A condition with an index matches only the
     index'th sub-element of the enclosing element.  Attribute tests are not
     exhaustive, and will match against both explicitly present and defaulte
     attribute values, using string equaLity.  Bare anames are satisfied by
     ANY value, explicit or defaulted.  Terms ending with * match
     any number of links in the chain, including 0.
sgmltrans
Name
sgmltrans -- translate XML files into another format.
Synopsis
sgmltrans  [-h] [-u base-url] [-d doctype] [-r rulefile] [-p] [inputs...]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-r rulefile
specifies the name of as file which describes a set of
rules for processing the XML input.
-p
If specified, he program will merely print out the
	  rules which are being used, and not process the input
Description


sgmltrans is a program for translating XML files into some other
format (which could be HTML or LaTeX or ...). It is loosely based
on COST and other SGML programs, in that one specifies actions to do
at SGML start tags, end tags and text content. In sgmltrans, these
actions are restricted to printing some text to the output stream.
The sgmltrans rule file consists of an ordered list of
rules.  A rule consists of an LT XML query (see section Query language)
which
describes the  elements to which the rule will apply; and a pair
of format strings, which specify the strings that will be printed when we
encounter (a) a start tag for a matching element, and (b) when we
encounter an end tag.

The format strings are printed as literal strings with the exception
of the two special characters $ and
\.
The character  \ forms part of an escape sequence
characters depending on the following character:

\n is replaced by a newline.
\t is replaced by a tab.
\\ is replaced by a single \.
for any other X \X is left unchanged as \X.
The format strings may contain special variables denoting the name of
the SGML element and the values of attributes.  These are $gi
and $attributeName,
where
attributeName is
the name of an attribute defined for the element (if the
input file is $notsgml; the attribute name
should be upper case, because the normalization process will
upper-case the attribute names in the input). These variables will be replaced by either the
element name or the value
of the attribute for an SGML element which matches the rule.
The lines containing format strings must start with a tab.
For example, given the rule:

.*/W
        ""
        "/$TAG\n"


the input file:

          <W TAG="A">The</W>
          <W TAG="B">cat</W>

will be converted into

          The/A
          cat/B


  For each element found in the input file, the rules are tried
  in their order in the rule file, until one is found whose query
  matches the element. Once a rule has matched, no more rules are
  applied to this element.
  Every rule file should contain a default rule which matches all
  elements, which will be used for elements which do not match any
  earlier rule. The default rule

          .*
               ""
               ""

prints nothing for elements which match it. Since all other rules
are tried before the default rule, this is often as required
  Finally, rules can also be specified to apply particular
  transformations to text bodies of elements. A rule query which ends
  in # matches text content. These rules are called data rules.
  Instead of a pair of start/end format strings, data rules contain a
  set of text transformations, currently just literal strings, but
  hopefully in future general regular expressions, of the form

        "searchString" --> "replacementString"

will also be supported.
Each transformation is applied globally to the text content before it
     is printed.
     So for example:


.*/W/#
        "&lt;" --> "$<$"


  could be useful if you were trying to produce LaTeX source from an
  XML file.  sgmltrans is still an experimental program.
Thus it is not
  particularly efficient and its functionality is limited in a number
  of ways. We intend to improve it on the basis of experience.  For
  more complex manipulation of SGML files see sgrpg.
sgrpg
Name
sgrpg -- systematically transform input document to changed output document
Synopsis
sgrpg  [-h] [-u base-url] [-d doctype] [-D cmdfile-dtd] [-v] [-r] [-f  cmdfile [query | sub-query | regexp | out-fmt | oarg]] [> input] [< output]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-D cmdfile-dtd
   (if specified) the location of the DTD for the pattern action
   file specified with -f.
   If the -D
   ddbfile is specified, use this,
   otherwise use the doctype given by the input file.
Note:   The previous version used an
environment variable for the default DDBFILE, because we have no way to stop it
     being used when the rule file is XML.  Now you have to either have
     an NSL declaration or pass the -D flag.
In LT XML 1.2 the rule file can be XML or nSGML, as can
the input file. We hope this is an esoteric point, but our tests
reveal that all combinations of XML and nSGML can work as you would
expect. One crucial proviso is that sggrep will
fail disastrously unless the attributes defined for the elements of
the
control file are either explicitly present or provided with default
values in the DTD. This is a leftover from nSGML, which did not
allow
dynamic addition of DTDs to the doctype of a
file. A future release will provide a version of sggrep
which handles this situation better.
[1].
-v
 Complement operation. If this option is specified then only elements
which do not match the regexp are output. Default is normal matching.
-r
 Interpret values of attributes in queries as regular expressions.
Default is to treat attribute values as plain strings.
-f  cmdfile
The command file which contains the pattern-action
	  statements that make up the sgrpg
	  program. This option is an alternative to the use of
	  explicit command line arguments to indicate the
	  transformation intended.
There are two different methods of calling sgrpg; in the first one
one specifies the query and the output format on the command line; in the
second (using the -f option) more complex sequences of queries and
formats can be specified in a control file. Details of both methods
	  are given below below.
If using -f then the
	  -D
option should appear before -f.
query
an NSL query which selects the set
of matching elements from the input stream.
sub-query
an NSL query which selects sub-elements of
query-selected item for regexp to match.
Note: The documentation
of 1.1 erroneously claims that sgrpg
provides default values for its arguments in the same way as
sggrep. It doesn't: you have to supply everything.
regexp
A regular expression to match against text directly contained in
in the sub-query selected sub-element of query-selected
item.
Note: Once again, this is not
optional, contrary to the claims of the documentation in 1.1.
out-fmt
A format string, similar to that for printf, but
	  supporting %s with the usual modifiers
for manipulation of field length, justification and so on,
	  %~ to stand for newline (literal newlines
	  would be removed by attribute value normalization), and
%% as an escape mechanism for when you really need
	  a % in the string.
oargs
A sequence of arguments to match out-fmt,
allowing specification of various parts of the matching material (see
examples below). Either <GI>, <DATA>, or attribute name.
Description

sgrpg is an SGML
 selection and transformation tool, it is still
experimental and we intend to extend it on the basis of experience.
sgrpg is an XML-aware query and transformation program.
It allows one to select a set of SGML elements from a document and
optionally to transform them into a new format. Sgrpg allows
nested queries and lists of alternative queries, and hence allows more
complex queries than sggrep (sggrep). In addition, it allows
one to specify what to output when one finds one of the SGML
elements which match one of the queries. This means that sgrpg is the
tool of choice when converting SGML into different file formats
(e.g. LaTeX or another text formatting language).  It is a filter, i.e.
it reads from stdin and writes to stdout.

Warning
This version of sgrpg
has an incompatible change: line breaks in format attributes will no
longer work, and the format specifier %~ should be used instead.

The reason for this change is:

  • XML requires attribute values to be normalised; linefeed characters
  are converted to spaces;
  • so in the last release, we worked around this by turning of attribute
  normalisation for sgrpg control files;

  • but we can now validate the control files, and the validator assumes
  that attribute values have been normalised.
  •
We think that the advantage in robustness provided by validation
outweighs the incompatibility introduced.

  • Normalised SGML control files (as opposed to XML ones) should be
unaffected.
Examples
 These examples document the old and less complex command-line
syntax.
sgrpg ".*/W" ".*" ".*" "%s/%s" "<DATA>" TYPE < temp.sgm
  prints out a list of all the <W> elements anywhere in
  the input document, in the form of
  word/type one per line.
sgrpg ".*/P/S/W" ".*" "theatre" "%s" "<DATA>" < temp.sgm
  prints out a list of all the <W> elements (inside
  <P> and <S> which contain the string
  "theatre".
  Queries are as for sggrep, but in addition allow a <term>
  of the form '#'.  A query which ends in an term '#' matches textual
  content.
Format of sgrpg control files:
A sgrpg control file is an XML or nSGML
file based on the
sgrpg.dtd DTD (in the lib/ltxml10
  subdirectory which is installed,either by default in
  /usr/local, or at a user specified location
  selected by an argument provided to configure,
when you install  LT XML ).
The file consists of a sequence of <Q>
 elements, which is interpreted as a set of queries/transformations
that sgrpg is to apply to the input.
A <Q>
element consists of subqueries or output format elements.
Subqueries consist of <S>, <G> or
<OR> elements.
An <S> element represents a sub-query.  The LINK
attribute of an <S> can be one of DEPSER, DEPSEQ, DEPPAR,
or INDEPENDENT(default).
By specifiying different values for this attribute it is possible to
control the way in which a set of sub-queries are interpreted.
INDEPENDENT
means start searching at same point in containing
  element, regardless of success or failure of other subqueries.
DEPSER
 means start where previous subquery finished, provided it
  succeeded.
DEPSEQ
means must match next sub-elt immediately after the
  previous match.
DEPPAR
means start at same point in containing element,
  provided others so far have succeeded, i.e. AND.
A <G> element groups together a
group of queries and/or format statements which are to be repeated.
EXP, ID and REF attributes can be specified for <OR>,
<S> or <G>.
EXP is one of ONE, OPT, PLUS,
STAR which allows one to state a Kleene operator on the desired
matches. REF is a #CONREF attribute which refers to another element
for doing repetition and self-inclusion.
<OR> elements describe a
short-circuit disjunction of sub-queries,
in which sub-queries are attempted in order until one succeeds,
or until the list of queries is exhausted.
Format elements consist of <F> statements, which describe
output strings which are printed when we find an element which matches
the query. <F> elements can contain <A>
elements, which describe where to find the data required by the format
string.  So

        <F S="{%s/%s}"><A TYPE=DATA/><A A=TYPE/></F>

defines a format string, the %s fields of which are filled from the
data content of the matching element and the value of the TYPE
attribute respectively.
<F> elements can alternatively be of the form
    <F TYPE=ELT [DN=number]>, which mean print the matching
element (or the numberth daughter, if number is
specified) as normalised SGML.
    <F TYPE=STAG [DN=number]> means print the entire
start tag, GI and all explicitly given attribute/value pairs.
<F TYPE=ETAG [DN=number]> means print the end tag.
<A> elements come in the following forms

<A TYPE=GI/>
 the name of the SGML element.
<A TYPE=DATA [DN=number]>
The
  numberth bit of text content of the element (default value
  of number is 0, i.e. the first).
<A A=Attribute_name/>
The value of the attribute
  called attribute_name.
<A TYPE=PATN [RN=number]/>
 the
  numberth match from a previous regular expression match.
  Any of the above can have a VTYPE attribute, with a value of one of
  STRING, INTEGER, or
  FLOAT.
If specified then the value of the
  <A/>is converted to that type if possible.
Example: Printing titles
<?XML VERSION="1.0"?>
<!doctype sgrpg SYSTEM "file:sgrpg.dtd,xml">
<Q Q=".*/DIV1">
<S Q=".*/TITLE"><F S="DIV1: %s
"><A TYPE=DATA/></F></S>
<S Q=".*/DIV2">
<S Q=".*/TITLE"><F S="DIV2: %s
"><A TYPE=DATA/></F></S>
<S Q=".*/DIV3">
<S Q=".*/TITLE"><F S="DIV3: %s
"><A TYPE=DATA/></F></S>
<S Q=".*/DIV4">
<S Q=".*/TITLE"><F S="DIV4: %s
"><A TYPE=DATA/></F></S>
</S></S></S></Q>


prints out the titles of <DIV1> ... <DIV4> elements.
Example: Everything except comments
The following rule file gives the query to print
out the entire contents of an XML file, except for <comment>
elements.

<?XML version="1.0"?>
<!doctype sgrpg SYSTEM "file:sgrpg.dtd">
<Q>                                              (1)
   <OR ID='TOP'>
      <S Q='COMMENT'></S>                        (2)
      <G><S POLARITY='N' Q='.*/COMMENT'></S>     (3)
         <F TYPE='ELT' DN='-1'></F></G>
      <G>                                        (4)
         <F TYPE='STAG' DN='-1'></F>             (5)
         <OR EXP='STAR'>                         (6)
            <S Q='./.' LINK='DEPSEQ'>            (7)
               <OR REF='TOP'>                    (8)
            </S>
            <S Q='./#' LINK='DEPSEQ'>            (9)
               <F><A TYPE='DATA'/></F>
            </S>
         </OR>
         <F TYPE='ETAG' DN='-1'></F>             (10)
      </G>
   </OR>
</Q>
(1)
The top level <q> (which has a default query of '.')
will match (because of the <or>), any of the
enclosed disjuncts.
(2)(3)
Either a comment element, in which case we are done,
something which does not contain any comments, which we print, or
something deserving more detailed attention.
(4)
This branch of the disjunction
is for elements containing a mixture
of comments and other stuff.
(5)
When we encounter the start tag we print it.
(6)
The EXP='STAR' modifier indicates that the
processing within the scope of the OR is to be
applied to successive child elements in turn.
(7)(9)
The first of these queries matches SGML elements proper, and
the second PCDATA pseudo elements.
The LINK='DEPSEQ' attributes make sure that
elements are processed sequentially, and that every element and
every piece of PCDATA is processed.
(8)
The top-level transformation is applied recursively to any
SGML elements which are encountered. This is specified by
providing
REF='TOP' as an attribute for the
OR
element. The effect of this is to
include the
OR element which has ID='TOP'.
and to re-apply the transformation in the context of the child whic
is currently being processed.
(9)
When PCDATA (specified by the trailing
# on the query) is encountered, it is simply
printed out.
(10)
Finally we print the end-tag to balance the start tag which
was printed when we began to process an element containing
contents. The unwinding of the recursion on element contents ensures
that all the start tags printed on the way to the leaves of the
document are balanced by their corresponding end tags.



Given the file

<?XML version="1.0"?>
<!DOCTYPE min [
<!ELEMENT min (div+)>
<!ELEMENT div ((comment|p)*)>
<!ATTLIST div foo CDATA #IMPLIED>
<!ELEMENT p (#PCDATA|comment|div)*>
<!ELEMENT comment EMPTY>
]>
<min>
<div>
<p>baz<comment/></p>
<p>
some text
</p>
</div>
<div foo='&#10;'><comment/></div>
</min>

the commands

sgrpg -f test.rule < test.sgm > test.nsg

will result in

<?xml version="1.0"?>
<min>
<div>
<p>baz</p>
<p>some text</p>
</div>
<div foo='&#10;'>
</div>
</min>



I.e. we have printed everything except <comment> elements.
sgcount
Name
sgcount -- count elements in an XML file.
Synopsis
sgcount  [-o  012] [-t] [inputs...]
-t
Means count top level element only.
-o 012
0 means default printout format, 1 means tag names and counts
only, 2 means global total number of tags only.
Description

It is often useful to count the number of occurances of SGML markup
in a file, for example when constructing <tagusage>
entries for the TEI DTD. Sgcount is intended to provide this
information.
If the -t option is specified then, sgcount only counts the
elements at the top level of the document. This form is useful for
running after sggrep, to see how many matching elements have
been found.
The default output consists of lines of the form
SGML element name TAB frequency TAB identified frequency
  where frequency is the number of times that
  SGML element name occurs in the input file and
  identified frequency is the number of times that it
  occurs with an explicit attribute of type ID.
A line of totals is printed after the statistics for individual tags.
The -o option allows user control of the
information printed. 0 means default printout format, 1 means tag names and counts
only, 2 means the total number of tags only.
knit
Name
knit -- process compound documents using
	hyperlinks
utility program
Synopsis
knit  [-h] [-u base-url] [-d doctype] [-r attr-spec...] [-i attr-spec...] [input.xml]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-r
means that the original element is
to be replaced (entirely) by the material
yielded by following the
HREF
attribute. Nothing of the original element survives.
-i
means
that the material
yielded by following the
HREF
attribute is to replace the content
  of the original element. The start and end tags, with attributes, of
	the original element survive.
Description
Insert linked-to material specified by a subset of the XML-LINK
standard. knit takes a single
input file making use of zero or more target
files to generate output which is
an edited copy of the input file.
The output draws its content from the input, except that
elements which have an xml:link="simple" attribute are inspected,
  and if they have attributes matching an attr-spec
they are replaced
  by the resource specified by the hred
attribute, which must
  be of the form
url#id(name)[..id(name)].
It is possible to specify two forms of resource:

  • url#id(name):
which denotes an element in the target file which has a particular
ID. This element is incorporated into the output file.
  • url#id(from)..id(to):
which denotes a range of element which appear in the target
file. These elements are incorporated in the output file.

An element in the target document matches an ID if
an only if it has an attribute of type ID, and
if the attribute in question has the right
value (it is requirement of XML that
elements have at most one attribute of type ID, and
that IDs are unique within a document).

Note: The
situation is unclear when, as is allowed by REC-xml-19980210
, the processor
does not have the information necessary to unambiguously identify
the relevant attribute.
Users of knit
are strongly advised to ensure that the target document does contain a
sufficiently explicit DTD. If this requirement proves impossibly
onerous, we would be interested to hear why, and to address the matter
in some future release of the system.

An error is reported when the resource specification refers
to IDs which are not present in the target document.
Elements which do not match an attr-spec
are passed through unchanged.
Note:   attr-specs are of the form name=value,name=value,...
  Quoting should be allowed in them but isn't.
  If no -r or
-i options are given, the default is

     -r show=replace,actuate=auto -i show=embed,actuate=auto


Example
This example is a cut-down version of a need which arose
in LTG and CSTR's SOLE (Spoken Intelligent Labelling Explorer).
We have a file of tokenised words, as shown below. We call this
the target file. In general
knit may use multiple target files
to generate its output. It finds target files by following links
which are specified in the input file. In this case, which is
typical, there is just one target file.
<?xml version='1.0'?>
<!DOCTYPE solexml SYSTEM "solexml.dtd" []>
<solexml>
<language name="english"/>
<wordlist>
 <w id="w394w398" punc="," whitespace=" " prepunctuation="">Indeed</w>
 <w id="w402" punc="0" whitespace=" " prepunctuation="">the</w>
 <w id="w406" punc="0" whitespace=" " prepunctuation="">term</w>
 <w id="w410w414w418" punc="'" whitespace=" " prepunctuation="`">jewelry</w>
 <w id="w422" punc="0" whitespace=" " prepunctuation="">encompasses</w>
 <w id="w426" punc="0" whitespace=" " prepunctuation="">an</w>
 <w id="w430" punc="0" whitespace=" " prepunctuation="">extraordinary</w>
 <w id="w434" punc="0" whitespace=" " prepunctuation="">range</w>
 <w id="w438" punc="0" whitespace=" " prepunctuation="">of</w>
 <w id="w442" punc="0" whitespace=" " prepunctuation="">accessories</w>
 <w id="w446" punc="0" whitespace=" " prepunctuation="">which</w>
 <w id="w450" punc="0" whitespace=" " prepunctuation="">people</w>
 <w id="w454" punc="0" whitespace=" " prepunctuation="">have</w>
 <w id="w458" punc="0" whitespace=" " prepunctuation="">used</w>
 <w id="w462" punc="0" whitespace=" " prepunctuation="">to</w>
 <w id="w466" punc="0" whitespace=" " prepunctuation="">decorate</w>
 <w id="w470w474" punc="." whitespace=" " prepunctuation="">themselves</w>
</wordlist>
</solexml>
and a corresponding file marked up with (minimal) information about
the information status of the terms. We call this the input
file. It contains two types of markup
sem-elem
and eraseable.
Since the input file has less dense markup, it is easier on
the
eye than the target file.
<?xml version='1.0'?>
<!DOCTYPE solexml SYSTEM "solexml.dtd" [<!ENTITY w "words.xml">]>
<solexml>
This is a type of brooch that was popular around the 1960s.  It might
not be instantly recognisable as "jewelry"; but it is important to
remember that jewelry doesn't have to be expensive or elaborately
crafted.  Indeed, the term
<sem-elem type="new-term" href="&w;#id(w410w414w418)">`jewelry'
</sem-elem>
<eraseable href="&w;#id(w422)..id(w470w474)">
encompasses  an extraordinary range of accessories which people
have used to decorate themselves.
</eraseable>
</solexml>
Note that the href attribute of
the sem_elem in the input file is
"&w;#id(w410w414w418)"
which refers to w410w414w418 in the file
words.xml (because words.xml is the
expansion of the entity &w;)
This ID is also present in the target file. When
knit processes this specification it will
obtain the corresponding element from the target file.
In this example, for reasons which will be explained later,
the element from the target replaces the original contents
of the corresponding element from the input file.

The href attribute of the
eraseable
is "&w;#id(w422)..id(w470w474)", which refers to
the range from w422 to w470w474
in the file words.xml.
When knit processes this specification it obtains
all the elements in this range.
In this example, for reasons which will be explained later,
these elements from the target completely replace
the corresponding element from the input file.
This behaviour differs from that seen earlier, in which the start
and end tags of the original sem_elem
are wrapped around the content obtained from the target file.
In a moment we will see how this behaviour is obtained.
These link syntaxes are the only ones which
we currently support. Other forms of link syntax
may in due course be added.
In this example both files use the same DTD, which is shown below.


Note: Nothing prevents you from using different DTDs for the different
files, but if you do this, it is as well to check the
output of
knit using a validating XML parser, since
you will have created a document which is based on two separate
and potentially incompatible DTDs.
<!ELEMENT solexml  (#PCDATA|language|wordlist |sem-elem|w)*>

<!ELEMENT wordlist  (w)*>
<!ELEMENT w  (#PCDATA)>
<!ATTLIST w id ID #REQUIRED
	    punc CDATA #REQUIRED
	    whitespace CDATA #REQUIRED
	    prepunctuation CDATA #REQUIRED>
<!ELEMENT language  EMPTY>
<!ATTLIST language name CDATA #REQUIRED>

<!ENTITY % replaceHyperlinkAttrs
         'href      CDATA    #IMPLIED
          xml:link  CDATA    #FIXED "simple"
          show      CDATA    #FIXED "replace"
          actuate   CDATA    #FIXED "auto" '>

<!ENTITY % embedHyperlinkAttrs
         'href      CDATA    #IMPLIED
          xml:link  CDATA    #FIXED "simple"
          show      CDATA    #FIXED "embed"
          actuate   CDATA    #FIXED "auto" '>

<!ELEMENT sem-elem  (#PCDATA|w)*>
<!ATTLIST sem-elem type (new-term) #REQUIRED
                   %embedHyperlinkAttrs; >

<!ELEMENT eraseable  (#PCDATA|w)*>
<!ATTLIST eraseable %replaceHyperlinkAttrs; >
The DTD specifies the actions which knit will perform by defining
attributes on the sem-elem and the
eraseable element. Here we are asking it to
replace the contents when it sees sem-elem, but
to replace the element itself when it sees
eraseable.
It is convenient to use XML parameter entities to abbreviate the
oddly-named attributes required by XML-LINK, especially since the
relevant attribute
names and the syntax of the values have changed frequently in the past.
We invoke knit with the simple command line:
knit sem-elem.xml
 obtaining the output
<?xml version='1.0'?>
<!DOCTYPE solexml SYSTEM "solexml.dtd" [<!ENTITY w "words.xml">]>
<solexml>
This is a type of brooch that was popular around the 1960s.  It might
not be instantly recognisable as "jewelry"; but it is important to
remember that jewelry doesn't have to be expensive or elaborately
crafted.  Indeed, the term
<sem-elem type='new-term' href='words.xml#id(w410w414w418)'>
<w id='w410w414w418' punc="'" whitespace=' ' prepunctuation='`'>jewelry</w>
</sem-elem>
<w id='w422' punc='0' whitespace=' ' prepunctuation=''>encompasses</w>
<w id='w426' punc='0' whitespace=' ' prepunctuation=''>an</w>
<w id='w430' punc='0' whitespace=' ' prepunctuation=''>extraordinary</w>
<w id='w434' punc='0' whitespace=' ' prepunctuation=''>range</w>
<w id='w438' punc='0' whitespace=' ' prepunctuation=''>of</w>
<w id='w442' punc='0' whitespace=' ' prepunctuation=''>accessories</w>
<w id='w446' punc='0' whitespace=' ' prepunctuation=''>which</w>
<w id='w450' punc='0' whitespace=' ' prepunctuation=''>people</w>
<w id='w454' punc='0' whitespace=' ' prepunctuation=''>have</w>
<w id='w458' punc='0' whitespace=' ' prepunctuation=''>used</w>
<w id='w462' punc='0' whitespace=' ' prepunctuation=''>to</w>
<w id='w466' punc='0' whitespace=' ' prepunctuation=''>decorate</w>
<w id='w470w474' punc='.' whitespace=' ' prepunctuation=''>themselves</w>
</solexml>

Note that elements from the target file have been incorporated
in the output, and that
the sem-elem is still present in the output file,
while the eraseable is absent.

unknit
Name
unknit -- create hyperlinked files from XML files
Synopsis
unknit  [-h] [-u base-url] [-d doctype] [basefile] [targetGI] [sourceGI] [<input-file] [> output-file]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
basefile
the file which holds the elements to which hyperlinks
	  in the output will refer.
targetGI
Occurrences of this SGML
  element in input will be replaced by hyperlinks back to
  corresponding elements in the basefile.
sourceGI
Specifying a sourceGI means that only
  targetGI occuring inside
  sourceGI will be hyperlinked. Occurrences
  of targetGI which are not inside
  sourceGI elements will be left
  untouched.
Usage
unknit is a program which creates hyperlinked
 XML  files
from XML or nSGML files. The present version is still somewhat
experimental. It turns out that combining hyperlinked files to a
 single
stream (the job of knit) is a daily occurrence
in our work on multimedia corpora, but that the need for
picking apart a stream into different levels does not arise nearly so
 much [2].
However, suppose test.w.xml is an XML
file which contains <w> markup around words; test.s.xml
is an XML file which contains <s> markup around sentences
(consisting of a sequence of <w> elements. Running the command:

unknit test.w.xml w s < test.s.xml > testout.s.xml

will create the XML file
testout.s.xml which contains the <s>
markup from test.s.xml, but with all
  <w> elements replaced with hyperlinks back to
  test.w.xml.
Note: This command is old, and we have never used it much. It
should work, but be cautious.
sgmltoken
Name
sgmltoken -- Text tokenization.
Synopsis
sgmltoken  [-h] [-u base-url] [-d doctype] [input file]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
input-file
If provided, the name of the file to be tokenized. Otherwise
standard input is tokenized.

Description

All text inside TEXT elements is
tokenized, i.e. split into tokens and marked up with
C elements.
Example
For example, if the relevant part of the input file is

<TEXT>
<BODY>
<W TYPE="red">Some</W> <W TYPE="blue&green &indint;">text</W>
   <W TYPE='foo&bar;nizz'>please</W>
</BODY>
</TEXT>

then the corresponding output will be

<TEXT>
<BODY>
<W TYPE="red">
<C ID='C2.T1'>Some</C>
</W><W TYPE="blue&green &int;">
<C ID='C4.T1'>text</C>
</W><W TYPE="foobarvalnizz">
<C ID='C6.T1'>please</C>
</BODY>
</TEXT>

Note that the C elements have been systematically
given appropriate IDs.
We make no claim that sgmltoken
is a general useful
tokenizer,
it can function as a placeholder for
a high-quality tokenizer, such as those used by
LT CHUNK
and LT
POS.
Note: sgmltoken is built
only when the system is compiled in 8-bit mode.
It is not built when the system is
compiled in 16-bit mode.
Contact the manager
of the Language Technology Group
directly for further details.
sgmlseg
Name
sgmlseg -- simple segmenter
Synopsis
sgmlseg input
Description
A Perl program which identifies words in text that has
	 already been marked up by sgmltok or
	 similar. Main interest is to demonstrate the fact that XML
	 (or nSGML) is a conveniently regular input format even for
	 tools which do not use the LT XML library, and the fact that
such tools can freely partcipate in pipelines of tools.
Caution
We provide this only for some platforms because of the
dependency on Perl. You probably won't miss it anyway, since it is
didactic rather thena useful.
sgmlsb
Name
sgmlsb -- Sentence boundary marker.
Synopsis
sgmlsb  [-h] [-u base-url] [-d doctype]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
Description
  adds S elements to a file which has already
been tokenized with sgmltoken and segmented with
sgmlseg.
We make no claim that this is a useful sentence boundary marking
application. But it fits into the same place in pipelines as would
a substantial sentence boundary marker as reported by Mikheev or
by David Palmer.
Contact the manager
of the Language Technology Group
directly for further details.
pesis
Name
pesis -- Trivial version of James Clark's sgmls.
Synopsis
pesis  [-h] [-u base-url] [-d doctype]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
Description
Takes XML input and produces output in the form that
nsgmls does (ESIS format).
xmlnorm
Name
xmlnorm -- XML normalizer.
Synopsis
xmlnorm  [-h] [-u base-url] [-d doctype]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-V
Validate the input
Description
Apparently trivial program which takes XML input and outputs
the
same
By default
entities will be expanded and such validation as LT XML usually
performs will occur.

Note: Validation is much more extensive in
the newest releases of LT XML There is a new 'V' flag
to NSL_Getoptions
which allows tools to transparently support
validation. xmlnorm
is the first to use this facility.

 If you suspect a bug it LT XML it will be
very useful to us if you can isolate the bug in the behaviour
of this program.
textonly
Name
textonly -- strip out markup
Synopsis
textonly  [-h] [-u base-url] [-d doctype] [-t tag] [-s c] [-x]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-t
If present, output only text which is found inside
this element.
-s string
If present, output the specified string as separator
between successive pieces of text.
Description
Outputs text, but not markup from the input XML file.
Especially useful values for the -c
parameter are ' ' (one space), '\n' (a newline) and
'' (the null string).
Care is sometimes needed to get newlines past your favourite
 shell and into this
program, but once this is achieved, typical results (e.g. words one
per line) are very satisfying. This is an effective route out of the
XML world and back to the newline delimited one record per line
world of tools like grep and awk.
simpleq
Name
simpleq -- example program.
Synopsis
simpleq  [-h] [-u base-url] [-d doctype] [-t tag-attribute] [-w word-element] [-f format-string
 ]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-t
Name for attribute under which POS tag is found.
-w
Name for element on which POS attribute is found.
-f
Output format string.

Description
Example program using queries.
simple
Name
simple -- example program.
Synopsis
simple  [-h] [-u base-url] [-d doctype] [-t tag-attribute] [-w word-element] [-f format-string
 ]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
-t
Name for attribute under which POS tag is found.
-w
Name for element on which POS attribute is found.
-f
Output format string.

Description
Example program not using queries.
sgsort
Name
sgsort -- sort XML elements
Synopsis
sgsort  [-h] [-u base-url] [-d doctype] [domain] [element] [key]
-u base-url
Use this URL as the base URL when resolving relative URLs. The
value specified for this argument is passed to
SFFopen or a similar stream creation function.
-d doctype
Use the doctype found in this file in preference to anything on
the input stream. The file can be any of

an XML file
an XML file with no body (i.e. just a doctype)
an NSG file
a .ddb  file
-h
Print usage information for the program.
-e
Do not expand entities.
domain
The container for the elements to be sorted
element
The type of the elements to be sorted
key
The attribute to follow to obtain the
	      sort key for the selected elements.
Description
Find the elements of type element
which occur within domain and output them in
alphabetical order of their key attributes.
nslshowddb
Name
nslshowddb -- display document type information
Synopsis
nslshowddb  [input-file]
Description
Display the contents of an nSGML .ddb
file. If you are a long-time nSGML user you will know that these
files are binary repositories for document type information, and will
appreciate the need to see this information when unexpected things
happen to your documents.
It is of little interest to a first-time user of LT XML, since
the toolkit provides no means for generating such files. The
need for such files has diminished with the advent and wide
dissemination of XML. An add-on
toolkit will continue  provide the additional functionality for nSGML users
who still need to generate .ddb files.
II. Type reference
This section introduces all the types which are manipulated via
the LT XML API. They are
included in the C header file nsl.h. (and we
provide further header files for those who need to use the
internal structure of our
'private'
types -- although we do not anticipate much real need for such use).

Note: The details of 'private' type declarations can
be found in the internal header file sys/nsllib.h. If you need their
internal structure and know what you are doing (i.e. you have read the
source files), you should include this header file in your C program
as well as the public nsl.h.
In LT XML 1.2 we have adjusted the structure of the include
files so that 'private' include files are kept in the
sys subdirectory of the main
ltxml10 include directory. The latter will be
automatically searched if you use the Makefile.usr
supplied with the distribution. The requirement to
explicitly write sys/... is imposed partly in order
to help programmers notice that they are moving beyond the official API.
We'd like to know if you encounter real reasons for using the
internal structure of our 'private' types. We hope you won't
have to: if you do it probably indicates a deficiency in the API.
Figure 1 illustrates the most important
relationships between the key types. The
types in question are:
NSL_Items,NSL_Datas and the tags
which mark their types.

Figure 1. Items and Data
In order to view an SGML document as a hierarchical structure, the
LT XML API constructs a C data structure made up of NSL_Item
and NSL_Data data structures (see NSL_Item and NSL_Data)
which mirrors the tree structure of the document.
The tree structure involves one more level of indirection than
you might expect. In a standard tree structure nodes point
directly to their sub-nodes, so we would expect to see pointers from
items directly some representation of their sub-items.
To simplify destructive operations on the sub-items, we
choose to represent the sub-items as a linked list.
The obvious way of doing this in C is to require that each
NSL_Item include a field which points to its right sister
(or NULL if there is none). Any item could  then be used to access
either the contents of the item itself or the linked list of sister
items.
We decided that this potential ambiguity
between the item and the list of which it is a member is confusing, and likely
to promote error.
Our design makes
NSL_Items containers for linked lists of
NSL_Datas. NSL_Datas wrap several different types of SGML
content to provide a uniform interface, and they provide the
links which connect successive sub-items of a particular item.
Functions which want to manipulate lists of items take and
return NSL_Datas as their arguments (see Structure navigation and Modification) while functions which work with
items take and return NSL_Items.
The NSL_Data data structure represents a chunk of SGML
element content, i.e. either an NSL_Item or some other
piece of content. Crucially, everything except NSL_Items (
text, CDATA, comments, document type information,and processing instructions),can be
adequately represented for our purposes by a simple text string. Thus
the only NSL_Datas which contain recursive structure are those which
point to a NSL_Item.
For flexibility NSL_Items and NSL_Datas include pointers to
their parents. The parent of an NSL_Item (if present)
is always an NSL_Data, and
an NSL_Data always has an NSL_Item as its parent.
 (see NSL_Item and NSL_Data for full descriptions of these structures)
Table of Contents
Char — type representing characters in the XML internal encoding
boolean — convenience type
NSL_BI_Type — type discriminator for NSL_Bits and NSL_Items
NSL_Item — type representing an SGML element, with contents.
NSL_Data — type representing SGML element content
NSL_Bit — type representing smallest transaction unit of event-level interface
NSL_Query — type which represents a path in hierarchical document structure
NSL_File — type which represents a stream for SGML input or output.
NSL_Doctype — a private type which the parser uses to access
	  and record information about the syntax and document type of
	  one or more SGML
NSL_ElementSummary — type representing information about a class of elements
NSL_AttributeSummary — type representing information about an attribute
NSL_EntitySummary — type representing information about an entity.
NSL_Attr — linked list of attribute specifications
Char
Name
Char -- type representing characters in the XML internal encoding
Synopsis
typedef char8 Char;
or
typedef char16 Char;
typedef char char8;
typedef unsigned short char16;
Description
The type Char is introduced for
characters which can appear in SGML text. It is controlled by a
compile-time switch: if the LT XML system is compiled in 16-bit mode
then Char is an unsigned 16-bit type. If it is
compiled in 8-bit mode, Char is equivalent to
char. Unsigned char would have been
better than char, but causes too many compiler warnings in
applications.
Externally provided
argument names are of type char8* since there is
currently no reliable cross platform solution for passing 16-bit
command lines to an LT XML tool. Conversion functions
strdup_char8_to_Char
and strdup_Char_to_char8 are provided, as are variants of
the common string.h functions which accept
Char
arguments (in string16.h). See the function
documentation and the example programs for more information.
boolean
Name
boolean -- convenience type
Description
	  The type boolean is defined as:
#define boolean int
It is used to mark the difference between functions which return
a truth value and those which return a richer error code
NSL_BI_Type
Name
NSL_BI_Type -- type discriminator for NSL_Bits and NSL_Items
Synopsis
typedef enum {NSL_bad,
	      /* The first are for bits */
	      NSL_start_bit, NSL_end_bit, NSL_empty_bit,
	      NSL_eof_bit, NSL_text_bit, NSL_pi_bit,
	      NSL_doctype_bit, NSL_comment_bit,
	      /* the rest of these are Item types */
	      NSL_inchoate, NSL_non_empty, NSL_empty, NSL_free} NSL_BI_Type;
Description
The LT XML data structures NSL_Item and NSL_Bit (defined in subsequent
sections) come in various types. These types have tags drawn from the
enumerated type above. LT XML 1.2 includes new bit types for
comments and document type information as part of support for
applications which need to see everything in the document.
See File flags for more detail.
NSL_Item
Name
NSL_Item -- type representing an SGML element, with contents.
Synopsis
/* Tree node corresponding to an SGML element */
typedef struct NSL_Item {
    const char *label; /* The SGML element name */
    const NSL_Doctype doctype;
    NSL_BI_Type type;
    struct NSL_Data *data; /* The SGML element content */
    NSL_ElementSummary defn; /* The NSL summary definition of
                                the element type */
    struct NSL_Attr *attr; /* Linked list of actual (as opposed to defaulted)
                              attributes for the element */
    struct NSL_Data *in; /* dominating NSL_Data if any */
} NSL_Item;

item.label
Contains the name of the SGML  element which
  this item is describing, e.g. ``P''. This field is constant
across
  all occurrences of the same element type. (For efficiency, the
comparison used to establish equality
  should be == in default mode, but
the less efficient
  Strcmp is necessary in the backward
  compatibility mode invoked by specifying
  NSL_use_strings
as argument to NSLInitNames).

item.doctype
A pointer to the document type of the
		NSL_Item in question. This is a new
		field in LT XML 1.2. It will not necessarily be
		supported in future versions of the API.
item.type
 Describes what sort of item this is.
  NSL_Items of type NSL_inchoate describe an SGML start tag
  e.g. <P type=indented>, but not the contents of this element.
  NSL_Items are initialised with this type value. If LT XML decides,
  after checking the DTD, that this item corresponds to an empty
  SGML tag (i.e. one with an EMPTY content model), then
  the type field is set to NSL_empty. If non-empty, then once
  LT XML has read the entire contents of this SGML element (i.e. as far
  as the corresponding end tag), then the type is set to
  NSL_non_empty.  Finally,
  NSL_Items that have been 'freed', by
  FreeItem will have type
  NSL_free. You will (we think) never encounter
  NSL_Items of this last type unless you have made
  a programming mistake.
item.data
a pointer to the representation of the
  content of this SGML element, i.e. a linked list of NSL_Data structures.
item.defn
an internal representation of the nature
  and details of the DTD definition of the SGML element (see
  Accessing the DTD)
item.attr
A pointer to a linked list of NSL_Attr structures which describes the attributes explicitly
  attached to this element, i.e. not defaulted attributes (see Attributes)
item..in
A pointer to the NSL_Data structure
  which contains this item, i.e. the content of the SGML  element
  which contains this element.
Description
The NSL_Item type describes an SGML  element and all its contents in
a document, i.e. it represents a complete subtree of the document
structure.
NSL_Data
Name
NSL_Data -- type representing SGML element content
Synopsis
typedef enum {NSL_undefined,NSL_text_data,NSL_item_data,
	      NSL_pi_data,NSL_comment_data,
	      NSL_cdata_data,NSL_free_data} NSL_Data_Type;


typedef struct NSL_Data {
    int ref;
    NSL_Data_Type type; /* type pointed to by first */
    struct NSL_Data *next; /* next NSL_Data or NULL */
    void *first; /* could be either text or an NSL_Item per type field */
    NSL_Item *in; /* dominating item */
} NSL_Data;

Values
data.ref
Used internally and should not be modified by
user code. It is in fact the position number of the NSL_Data in
its enclosing NSL_Item.
data.type
Tells us whether this NSL_Data} refers to
an SGML element NSL_item_data, to some character data
(NSL_text_data),to the contents of a processing
		instruction(NSL_pi_data), to the
		contents of an SGML comment
		(NSL_comment_data), to the contents
		of a CDATA marked section
		(NSL_cdata_data) or to an
		erroneously freed piece of data
		(NSL_free_data, which obviously
		shouldn't happen unless something has gone wrong).

Note: The flags for comments and CDATA are new in this version. They
exist as part of the new support for applications such as XML
structure editors. This support
allows the system to return a full representation of the SGML
document being processed.
data.next
The next document chunk which is at the
same level of nesting in the SGML document structure. It is NULL if
this is the last daughter of its parent.
data.first
Points to a string (an array of Char)
or to an NSL_Item which is the content of this data element.
data.in
The NSL_Item which contains this data
element.
Description
Represents a chunk of SGML
element content, i.e. either an SGML element or a piece of text without
element structure. They are organised into a linked list of mixed
NSL_Items and text in mixed content, with the additional guarantee
that there will be no bare text
element-only content.

There may also be NSL_Datas of type NSL_pi_data, which
represent SGML processing instructions. In this case the data.first
pointer points to the string body of the processing instruction.

NSL_Bit
Name
NSL_Bit -- type representing smallest transaction unit of event-level interface
Synopsis
typedef struct NSL_Bit {
    NSL_BI_Type type;
    boolean isCData; /* only valid if type NSL_text_bit */
    union {
      NSL_Item *item; /* type NSL_start_bit */
      Char *body; /* text, pi */
      void * data; /* NSL_internal_bit */
    } value;
    const Char *label; /* valid only if type NSL_start_bit or NSL_end_bit */
                       /* or NSL_empty_bit */
} NSL_Bit;
Description

NSL_Bits describe the basic chunks of an SGML document as
follows:

NSL_start_bit
An SGML start tag, e.g. <P type=indent>, for non-empty elements.
NSL_end_bit
An SGML end tag, e.g. </P>
NSL_empty_bit
An SGML milestone tag, e.g. <xref/>
NSL_text_bit
A piece of text with no SGML element content.
NSL_pi_bit
An SGML processing instruction e.g. <?tabset tab=8?>
NSL_doctype_bit
The text of an SGML doctype bit.
NSL_comment_bit
The text of an SGML comment e.g. <!-- do not throw
bytes at this notice -->
NSL_bad
Unless you do unusual things, you  should never see this value,
but see Error handling for more information on how to adjust
the default error-reporting behaviour of LT XML.
NSL_eof_bit
Only set when we have reached end of file.
An NSL_Bit points to either Char data (type
  NSL_text_bit NSL_doctype_bit,NSL_comment_bit or NSL_pi_bit) or to an NSL_Item (type
  NSL_start_bit or NSL_empty_bit).
  The label field (when defined, i.e.for NSL_start_bit,NSL_empty_bit or NSL_end_bit) is the name of the corresponding
  SGML element.
If you work at the event level rather than the element level,
you gain a degree of flexibility, but must take on more responsibility
for ensuring that any XML documents which you generate are
well-formed and/or valid.
NSL_Query
Name
NSL_Query -- type which represents a path in hierarchical document structure
Synopsis
typedef const struct NSL_Query_I* NSL_Query;

Description
An NSL_Query is a data structure which is the internal
representation of a query. A query is a description of a path in the
SGML document structure.
NSL_Query
    is defined as a pointer to a private data structure,
i.e. all you can do with them is to pass them around between NSL
functions.
NSL_File
Name
NSL_File -- type which represents a stream for SGML input or output.
Synopsis
typedef struct NSL_File_I* NSL_File;
Description
Defined as a pointer to a private data structure,
i.e. all you can do with them is to pass them around between NSL
functions.
In LT XML 1.2 there is a much enriched ontology of file
types, intended to cover a variety of processing needs for both input
and output. See File flags for
detailed information.
NSL_Doctype
Name
NSL_Doctype -- a private type which the parser uses to access
	  and record information about the syntax and document type of
	  one or more SGML
Synopsis
typedef const struct NSL_Doctype_I* NSL_Doctype;
Description
An NSL_Doctype A container for the type of
information usually found in an SGML Document Type Description
(DTD).NSL_Doctype is defined as a pointer to a private data structure,
i.e. all you can do with them is to pass them around between NSL
functions. Since DTDs are optional in XML mode, the library also uses
this type to record DTD-style information which it infers during
processing of document content. Under some, but not all, circumstances
this discovery of DTD information will be accompanied by a pattering
of warning messages (see Error handling
for more detail).

Note: We lied about the typedef. In reality the declaration of NSL_Doctype is not a typedef,
  but rather a preprocessor macro, which means it cannot be used to
  declare more than one variable at a time. Using a real typedef
  interacts badly with C's const modifier.


NSL_ElementSummary
Name
NSL_ElementSummary -- type representing information about a class of elements
Synopsis
typedef const struct NSL_ElementSummary_I* NSL_ElementSummary;
Description
The NSL_ElementSummary data structure provides
access to document information
about an SGML element. In XML mode this information may be
determined incrementally, but in nSGML mode the information is
predetermined by the original DTD.
NSL_ElementSummary is defined as a pointer to a private data structure,
i.e. all you can do with them is to pass them around between NSL
functions (see Accessing the DTD)
Note: We lied about the typedef. In reality the declaration of NSL_ElementSummary is not a typedef,
  but rather a preprocessor macro, which means it cannot be used to
  declare more than one variable at a time. Using a real typedef
  interacts badly with C's const modifier.
NSL_AttributeSummary
Name
NSL_AttributeSummary -- type representing information about an attribute
Synopsis
typedef const struct NSL_AttributeSummary_I* NSL_AttributeSummary;
Description
The NSL_AttributeSummary data structure describes the structure
of an SGML attribute as defined in the DTD.
  NSL_AttributeSummary is defined as a pointer to a private
  data structure, i.e. all you can do with them is to pass them around
  between NSL functions (see Accessing the DTD).
Note: This one really is a  typedef. The problem with
const doesn't arise.
NSL_EntitySummary
Name
NSL_EntitySummary -- type representing information about an entity.
Synopsis
typedef const struct NSL_EntitySummary_I* NSL_EntitySummary;
Description
Defined as a pointer to a private data structure,
i.e. all you can do with them is to pass them around between NSL
functions (see Accessing the DTD).
Note: This one really is a  typedef. The problem with
const doesn't arise.
NSL_Attr
Name
NSL_Attr -- linked list of attribute specifications
Definition
typedef struct NSL_Attr {
    NSL_AVType valuetype;            /* type of value */
    NSL_ADefType deft;                /* type of default value */
    const Char *name;                      /* name of attribute */
    union {
        const Char *string;                /* NAME, STRING */
    } value;                         /* actual value */
    struct NSL_Attr *next;          /* list link */
} NSL_Attr;
III. Initialising LT XML
Contents
This section describes the functions which are used to allocate and
deallocate the resources which LT XML needs in order to run. It
also describes NSLInitNames, which makes
available a backward compatibility mode in which a measure of
efficiency is sacrificed for programmer convenience. Use  of this
mode is deprecated.
Error handling
Error handling in LT XML is systematic and principled: All interface
functions now may return a detectable error value, usually either
NULL, FALSE or EOF depending on their declared return value type
(pointer, boolean or int).  Errors have three severity levels: 0 for
warnings, 1 for errors and 2 for impossibilities.  Normally level 0
errors are logged and no error value is returned, i.e. normal
processing continues, level 1 and 2 errors are logged and then 'exit'
is called.  But this is under user control, via the error
threshold argument to NSLInit.
If the error threshold is 0, behaviour is as specified above.  If it
is -1, warnings will cause exits as well.  If it is 1, errors will
attempt to carry on, returning error values all the way out.  If it is
2, the same is true for impossibilities.  In other words, when an
error is logged, the code after that is effectively:
if( severity > error_threshhold ) exit;
Table of Contents
NSLInit — function to initialise LT XML and set level of error reporting.
NSLGetoptions — process standard options
NSLInitNames — function to control the behaviour of attribute names.
NSLClose — function to deallocate resources allocated by
	    NSLInit
NSLInit
Name
NSLInit -- function to initialise LT XML and set level of error reporting.
Synopsis
boolean NSLInit(int error_Threshold);
Description
This function initialises the LT XML API library. It should be called
once before any other LT XML functions are called.
It returns TRUE for success or FALSE for failure (probably due to inability to
allocate enough space for internal tables).
The error_Threshold
parameter of NSLInit controls
error handling in the NSL interface as described in
 Error handling.
Usage
This example is a stripped down version of the LT XML tool
xmlnorm.
The marked line shows the standard use of NSLInit.
#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);                                            (1)

    sf   = OpenURL(argv[1],dct,intype,enc,NULL);
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFrelease(sf,FALSE);
    SFrelease(outf,TRUE);

    NSLClose();

    return 0;

}


(1)
Initialise NSL with the default (strict) error reporting
NSLGetoptions
Name
NSLGetoptions -- process standard options
Synopsis
NSL_Common_Options * NSLGetoptions(
    int *argcp, char
    **argv,
    const char *opts,
    void (*usage)(int exitval));
Description
The string opts contains the standard options applicable to
	  the program.  These are

h
Provide version and usage information
d
Load main doctype from specified file
D
Load subsiduary doctype from specified
		  file. Programs such as sgrpg have
		  one doctype for regular input files and other for
		  a subsiduary input file such as a configuration or
		  script file in XML syntax.
e
Do not expand entities on reading in,
or on writing out of XML.
u
Set the base URL specified by the argument
V
Extensively validate XML input.

usage
is a function to call for errors and the -h argument; it takes an argument
which is the exit status.  NSL_Common_Options
	  currently contains fields
options.doctype and
options.aux_doctype which are the doctypes read from the files specified by
-d and -D, and
	  options.base_url which is the (new)
-u argument which should be
passed as the name argument to SFFopen or OpenStream.
After calling NSLGetoptions argc and argv will have only the non-standard
options left.
options =  NSLGetoptions(&argc, &argv, "?duz", usage);
NSLInitNames
Name
NSLInitNames -- function to control the behaviour of attribute names.
Synopsis
NSL_Name_Behaviour NSLInitNames(NSL_Name_Behaviour behaviour);
Description

This function modifies the behaviour of LT XML regarding attribute
names. It should not need to be called unless you have existing
code which calls the LT XML API, or you want to access attribute
values without knowing the doctype of an item.
The type NSL_Name_Behaviour is defined as:
typedef enum { NSL_use_names, NSL_use_strings } NSL_Name_Behaviour ;


For efficiency reasons, we have made attribute
  names unique names per doctype in the same way as element
  names. This means that (a) attribute names to
GetAttrVal and
  PutAttrVal must be unique names (i.e. the result of calling
  AttrUniqueName on the string name of an attribute), and that
  (b) there is doctype parameter to ParseQuery
  and ParseQueryR. However,
  for reasons of backward compatibility, we allow a mode where
  attribute names can be arbitrary strings, and the doctype
  parameter to ParseQuery can be
  NULL. Use of this mode is deprecated.
Usage
This schematic example indicates how to use NSLInitNames.
#include "nsl.h"
int main(int argc, char **argv){

    NSLInit(0);

    NSLInitNames(NSL_use_strings);                         (1)

    processing_with_string_behaviour();

    NSLInitNames(NSL_use_names);                           (2)

    processing_with_name_behaviour();

    NSLclose();

    return 0;
}
(1)
The backward
  compatibility mode is enabled. Strings passed to
GetAttrVal and
  PutAttrVal need not be unique names. The
  NSL_Doctype
argument to ParseQuery
and ParseQueryR can be NULL. Comparisons of
  element names must use Strcmp or equivalent.
(2)
The backward
  compatibility mode is disabled. The more
efficient default mode is reinstated.
Strings passed to
GetAttrVal and
  PutAttrVal must be unique names obtained from
  the API.  The
  NSL_Doctype
argument to ParseQuery
and ParseQueryR may not  be NULL.
NSLClose
Name
NSLClose -- function to deallocate resources allocated by
	    NSLInit
Synopsis
void  NSLClose(void);
Description
This function is the 'closing bracket' with respect to NSLInit,
i.e. it deallocates all space allocated by NSLInit. Its use is
optional, but useful if you are concerned with removing all memory
leaks.
IV. Opening and closing input and output streams
This section describes the functions for opening and closing
input and output streams. These functions exist in new and old
flavours, because of the fact that Unicode support requires
that certain functions have extra
arguments to specify character encodings.
Were we working in a language which permitted default arguments,
as C++ and Lisp do, but C does not, we could have avoided the need for
extra functions.
Table of Contents
OpenURL — function to open a stream to an XML document described by
	  a URL.
OpenStream — function to create an NSL_File from an
	  existing standard I/O FILE *.
OpenString — function to open a stream to or from an LT XML string.
ReadProlog — read document prolog under user control
SFFopen — function to open a stream to an XML document connected to a C stdio
file handle.
SFopen — function to open a stream to an XML document specified by a file name
file handle.
SFclose — function to close a file opened with
	  SFFopen or similar.
SFrelease — function to close file, releasing memory and (optionally) NSL_Doctype
OpenURL
Name
OpenURL -- function to open a stream to an XML document described by
	  a URL.
Synopsis
NSL_File OpenURL(const char *url,
    const NSL_Doctype dtype,
    NSL_FType type,
CharacterEncoding encoding,
const char8 *base);
Inputs
url
The URL on which the stream is to be based If url is a relative URL it is combined
  with the base URL base.
If base is null a default base URL
  is used, referring to the current directory with scheme file:
  This allows filenames to be used as URLs.  The merged url is stored
  in the returned NSL_File, and can be retrieved using the
  function GetFileURL (the main use for this is to provide a
  base URL when opening URLs referred to in the document).
base
The base URL, see discussion of url above.
dtype
can either be an explicitly given XML DTDescription
  (always needed for output
  files, and can be used to override the declared DTD of input files), or NULL, in which case the DTD to be used will be read from
  the file and saved in the return value where it can be found by
  using DoctypeFromFile
type
The mode of the stream. In 1.1
		this was an enumerated type. For greater flexibility
		it is now an integer built from the flags specified
below. You must always specify exactly one of
		NSL_read
or NSL_write as part of the set of flags used. For
backward compatibility some of the flags used in the earlier version
(notably NSL_write_normal are given pre-defined
meanings which include NSL_write or
NSL_read (in particular
		NSL_write_normal
is equivalent to NSL_write). New programs should
use NSL_write and NSL_read
directly.

File flags
NSL_read
Read the document. The default behaviour
			is to expand entity references, to refrain
			from passing to the
			application processing instructions, comments
			and document type information, and to permit some forms of
			strictly illegal XML (although in the last
			case warning messages will be produced when
			the illegalities are encountered).
NSL_read_all_bits
The library will pass to the application
			not only content
			elements but also comments, processing
			instructions
CDATA is marked as such. If you additionally specify
NSL_read_no_consume_prolog document type
			information will also be returned in the form
			of a bit.
This flag is
			provided primarily for the benefit of
			applications such as XML structure editors which need to show
			all aspects of a document.
NSL_read_strict
Check almost all aspects of the
			document for conformance with the XML
			standard. In this mode processing stops when
			an error is encountered. In practice this mode
			is mainly for parser debugging, when we run
			our tools against  test suites of
			pathologically peculiar XML.
NSL_read_no_expand
Do not expand entity references. This is
			again useful for editor like applications,
			where we need to show the whole contents
			of the source file.
NSL_read_no_consume_prolog
Don't read the prolog immediately on file opening. Use with
NSL_read_all_bits to get the prolog information
as bits.
This is again useful for editor like applications, where we need to
show the whole contents of the source file.
NSL_no_normalise_attributes
Leave attributes as they were in the
file. This is again useful for editor like applications, where we need to
show the whole contents of the source file.
NSL_read_defaulted_attributes
Return default values for attributes if
they are not explicitly given, as if they were really there.  (Note that
the function GetAttrStringVal
always returns defaults if appropriate, regardless of this flag.)
NSL_read_flags
A mask which allows us to pick out read
			information, as in:
if((type & NSL_read_flags) == (NSL_read_all_bits|NSL_read_strict))
      strict_and_exhaustive_activities();
NSL_write
Write the document. By default the
LT XML library ensures that doctype information is added to the
output document before any content information. By default record ends
are added before start tags in element-only content.

NSL_write_no_doctype
When this flag is specified it
switches off the default printing of doctype information.
NSL_write_plain
This is the same as
			NSL_write.
NSL_write_fancy
Specifying this flag ensures that
record ends are added at the start and end of the text content.
NSL_write_canonical
Write canonical XML, as defined by
			James Clark. Primarily useful for checking the
			software against pre-existing test suites.
NSL_write_no_expand
Counterpart of
			NSL_read_no_expand. Prevents & from being escaped in the output file.
NSL_write_default
Same as NSL_write.
NSL_write_style
 mask for style information
NSL_write_flags
mask for write information
NSL_write_minimal
defined as
			NSL_write|NSL_write_plain|NSL_write_no_doctype (i.e. print only what is explicitly passed to the stream, adding no extras).
NSL_write_normal
defined as NSL_write,
			provided mainly for backward compatibility.
NSL_write_pretty
defined as NSL_write|NSL_write_fancy.
NSL_write_normal_nd
defined as
			NSL_write|NSL_write_no_doctype.

The last four flags are provided for convenience and
backward compatibility.
Even finer grained control of input and output is available by using
RXP, at the expense of the convenience features offered by LT XML.
Cautions
Not all URLs are supported
  Currently only http: URLs and file: URLs without a host
  part are supported.  Writing is only supported for file: URLs.

  You are not supposed to use schemes with relative URLs,
  i.e. using file:foo.xml to mean a file relative to the base
  URL. The recommended form is foo.xml. The form with   file: will work if the base URL is a file URL (a warning is given),
  but will  not work if the base URL is an http: URL.
In LT XML 1.2
fragment locators (foo:bar#nizz) are not permissible as URLs.
We do not currently handle http redirects.
Pipelines and URLs
You need to be very careful when working with relative URLs in
pipelines. Pipelines of tools all of which run in the same directory
will give few problems. Pipelines whose tools are distributed across
different directories, across machines, or across network locations
are likely to give unexpected results.
Each tool may have a different working directory, hence it
is possible that each tool will find a different interpretation
for a particular relative URL.
In the right hands this property of relative URLs
could be a powerful feature, but it has clear
potential for causing considerable confusion. There
are however clear advantages to using relative URLs, since
they make it easy for corpora to be moved around a file system without
editing the data files themselves.
Most tools now take a -u switch which
specifies
the base URL against which URLs are interpreted. Systematic use
of this switch is advisable in complex pipelines.
Usage
 A standard technique for opening an XML  file, processing it and
  writing a copy of it , is as follows.
#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);

    sf   = OpenURL(argv[1],dct,intype,enc,NULL);           (1)
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFrelease(sf,FALSE);
    SFrelease(outf,TRUE);

    NSLClose();

    return 0;

}


(1)
Open the URL specified on the command line,using the default base URL.
OpenStream
Name
OpenStream -- function to create an NSL_File from an
	  existing standard I/O FILE *.
Synopsis
NSL_File OpenStream(const FILE *fp,NSL_Doctype dtype,
	  NSL_FType ftype, CharacterEncoding
	  encoding, const char
	  *name);
Inputs
fp
The FILE * which identifies the document
		  to be processed.
dtype
As for OpenURL.
ftype
As for OpenURL.
name
The encoding description for this stream.
name
  A string identifying the document, used
  for error reporting.  It may be the name of the input file if this
  is known, or something like <stdin>.  It is also stored as the
  URL of the document (merged with the default base URL as described
  under OpenURL); if this is not appropriate the function SetFileURL may be used to change it.
Usage
 A standard technique for opening an XML  file, processing it and
  writing a copy of it , is as follows.
#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);

    sf   = OpenURL(argv[1],dct,intype,enc,NULL);           (1)
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");(2)
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFrelease(sf,FALSE);
    SFrelease(outf,TRUE);

    NSLClose();

    return 0;

}


(1)
Use OpenURL to open a stream from a URL
specified on the command line. (In a real program we would check
that the command line makes sense before doing this). We specify NULL
as the NSL_Doctype argument, and
CE_unknown
as the character encoding. This means that both document type
information and character encoding information are read from the
input document and stored in dtype.
(2)
Use the doctype of the input file to open an
output file on standard output. Because CE_unknown
has been specified as the output character encoding, and a non-NULL
NSL_Doctype
has been provided, the actual
encoding used is the one which has been stored in the doctype
structure when the input file was opened two lines above.
OpenString
Name
OpenString -- function to open a stream to or from an LT XML string.
Synopsis
NSL_File OpenString(const char *text, const NSL_Doctype dtype, NSL_FType ftype);
Inputs
text
The string from which input is taken, or to
		  which output is sent. Note that when LT XML is
		  compiled in 16-bit mode, the Char
		  element type of the string
		  may be (in fact, for most systems, will be) distinct from the
		  char type of conventional C
		  strings.
For
  output the programmer must ensure that the allocated size string is big enough to contain
all the data which will be written there. A future release of LT XML
  may provide a mode which lifts this restriction.
For input, the string which is passed in must be
in LT XML's internal character encoding.
OpenString does no character encoding conversion,
so
it is the programmer's
responsibility to ensure that the string is correctly encoded.
Typically this will already be
the case if the string has been obtained via an LT XML API function.
Otherwise, as in the example program below, it necessary to call
strdup_char8_to_Char to perform the conversion.
It is processed as if
it were the value of an internal entity. This means, in particular,
that it should not contain an XML declaration. (If it does, it will
still be processed, but a warning message will be printed to standard error).
dtype
As for OpenURL.

ftype
As for OpenURL.

Description
  Open the LT XML string text as an input or output stream.
Usage
The following example reads from a string and outputs
	  to standard output.
#include "nsl.h"
#include "string16.h"

int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    static char inputString[] = "<!DOCTYPE FILE [\n\
<!ELEMENT FILE (HEADER,TEXT)>\n\
<!ELEMENT HEADER (#PCDATA)>\n\
<!ELEMENT TEXT  (P*)>\n\
<!ELEMENT P      (W*)>\n\
<!ELEMENT W     (#PCDATA)>\n\
<!ATTLIST W TYPE CDATA #REQUIRED>\n\
] >\n\
<FILE>\n\
<HEADER>blah blah</HEADER>\n\
<TEXT>\n\
<P>\n\
<W TYPE='det'>The</W>\n\
<W TYPE='nn'>cat</W>\n\
</P>\n\
</TEXT>\n\
</FILE>";

    Char * text;

    NSLInit(0);

    text = strdup_char8_to_Char(inputString);              (1)

    sf   = OpenString(text,dct,intype);                    (2)
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return -1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFrelease(sf,FALSE);
    SFrelease(outf,TRUE);

    NSLClose();

    return 0;

}
(1)
Generate a heap-allocated LT XML string suitable for passing
to  OpenString from a static C string.
(2)
Create an LT XML stream from the string just
created. Subsequent processing is as for any other stream.
ReadProlog
Name
ReadProlog -- read document prolog under user control
Synopsis
int ReadProlog(NSL_File sf);
Description
This function is only needed in conjunction with the
NSL_read_no_consume_prolog flag to the file opening
functions. Unless the NSL_read_no_consume_prolog flag is
specified, the input functions will autmatically ensure that the
necessary information from the prolog is read and recorded.
But if the user specifies NSL_read_no_consume_prolog, this will
not happen. On the one hand, it is his responsibility to either
call ReadProlog or manually read the prolog bits before calling any
functions that require the doctype (eg
AttrUniqueName).
On the other hand it will be possible for applications such as
structure editors to have accurate knowledge of every aspect of the
contents of the document.
SFFopen
Name
SFFopen -- function to open a stream to an XML document connected to a C stdio
file handle.
Synopsis
NSL_FIle SFFopen(const FILE* fp,NSL_Doctype dtype,NSL_FType ftype,const char8 * name)

Inputs
fp
A file handle obtained from fopen,fdopen
or similar standard I/O function,
dtype
as for OpenURL.
ftype
As for OpenURL.
name
This is a name which the programmer must provide
 in order that
		error messages can refer to the stream.
Normally, it should be the name of
  the input file if this is known.
Description
SFFopen opens a stream which reads from the
standard I/O file handle specified. If the name of the file ends in
`.gz',  then it is
  treated as a compressed file. If reading, the file will be
  uncompressed on input. If writing, then the
  file will be compressed on output.


OpenStream provides similar functionality,
but permits the user to specify a character encoding for output. New
programs should use OpenStream. Most of the
sample programs which we provide still use
SFFopen, but will in due course be changed. Don't
hold your breath!
Usage
 A standard technique for opening an XML  file, processing it and
  writing a modified version of it, can be initialised as follows (see
  also simple.c and
 simpleq.c):
#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);

    sf   = SFFopen(stdin,dct,intype,"<stdin>");            (1)
    dct  = DoctypeFromFile(sf);                            (2)
    outf = SFFopen(stdout, dct, outtype,"<stdout>");       (3)
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFclose(sf);
    SFclose(outf);

    NSLClose();

    return 0;

}

(1)
Create an input stream from
		stdin. Use the document type found
		on the input stream.
(2)
Obtain the document type of sf
(3)
Create an output stream from
		stdout. Use the same document type
		as sf
Errors
  If an error occurs then NULL is returned. Possible
	errors are:

NEIFND
No doctype provided for or found in SGML input file.
NWOFND
XML Output file needs doctype for
    normal or pretty output but none supplied or defaulted: minimal
    output will ensue.


SFopen
Name
SFopen -- function to open a stream to an XML document specified by a file name
file handle.
Synopsis
NSL_File SFopen(const char8 * name,NSL_Doctype dtype,NSL_FType ftype)

Details as for SFFopen but
specifying source
using a file name rather than a file handle.
Usage
 A standard technique for opening an XML  file, processing it and
  writing a modified version of it, can be initialised as follows (see
  also simple.c and
 simpleq.c):
  char8 * filename;
  NSL_File inf, outf;
  NSL_Doctype dct=NULL;
  ...
  inf=SFopen(filename, dct, NSL_read);                     (1)
  dct=DoctypeFromFile(inf);
  outf=SFFopen(stdout, dct, NSL_write_normal,"");          (2)

(1)
SFopen opens an XML file for reading
which sets the DTD to be used for processing.
(2)
The DTD from the input file is then passed to SFFopen for the output
  stream, which will create an XML document stream using the same DTD
  as the input document.
See also
OpenURL, which was new in 1.1, provides similar
	functionality, and supports input from URLs.
SFopen also allows input from URLs, but
	OpenURL
allows a character encoding and a base URL to be provided. New programs
	should use OpenURL.
SFclose
Name
SFclose -- function to close a file opened with
	  SFFopen or similar.
Synopsis
int SFclose (NSL_File * f)
Description
	  Close the  NSL_File f. This should be done explicitly for every
output file opened by your program.
If memory usage is a concern (as it will be for long-running
programs and when working on platforms with primitive or
absent virtual memory facilities), you may prefer to use
SFrelease, which will automagically free the
resources associated with the processing of the corresponding file
when the releaseDoctype argument is true.
Usage
The following is a stripped down version of the
xmlnorm tool which is part of LT XML.
The marked lines show the usage of SFclose.
#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);

    sf   = OpenStream(stdin,dct,intype,enc,"<stdin>");
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFclose(sf);                                           (1)
    SFclose(outf);                                         (2)

    return 0;
}

(1)
Close the input file.
(2)
Close the output file.
SFrelease
Name
SFrelease -- function to close file, releasing memory and (optionally) NSL_Doctype
SFrelease
int        SFrelease( NSL_File f, boolean releaseDoctype);
Description
  Similar to SFclose, but cleans up all memory allocated by     SFopen on the heap and in virtual memory. This is
  not the default, because once you have called  SFrelease,
  you are no longer allowed to access any XML structure which you
  read from that file, i.e.  NSL_Items,
    NSL_Bits or NSL_Datas or strings from them. If you
   access such pointers after
    SFrelease, unpredictable errors or other odd behaviour is
  almost guaranteed.
  If your application is speed critical, and you don't care
about memory leaks, then you may wish to avoid SFrelease, since
it is more costly than
    SFclose.
On the other hand, if you are
  opening, processing and closing many files independently of each
    other, then memory usage will be easier to keep track of if you
systematically prefer SFrelease

    If the releaseDoctype parameter is TRUE, then the space
    allocated to the NSL_Doctype is freed. If FALSE, then the
    NSL_Doctype is not  freed.
If TRUE is specified as the second parameter, the programmer must
ensure that the NSL_Doctype
associated with the document is one on which the library can safely
call free, and must also ensure that no
subsequent use is
made of other files which refer to the same doctype.
In particular, this means that when you are writing a simple
      filter, you should ensure that the
second parameter to  SFrelease is TRUE only when
closing the second of the two files involved. This is shown in the
usage example.
 Usage
The following is a stripped down version of the
xmlnorm tool which is part of LT XML.
The marked lines show the usage of SFrelease.

#include "nsl.h"
int main(int argc, char **argv){
    NSL_Bit *nslbit;
    NSL_File sf, outf=0;
    NSL_Doctype dct = NULL;
    CharacterEncoding enc = CE_unknown;
    NSL_FType intype = NSL_read, outtype = NSL_write_normal;

    NSLInit(0);

    sf   = OpenStream(stdin,dct,intype,enc,"<stdin>");
    dct  = DoctypeFromFile(sf);
    outf = OpenStream(stdout, dct, outtype,enc,"<stdout>");
    while( ( nslbit = GetNextBit(sf) )){
	      if (nslbit->type==NSL_bad) {
		  PrintText(outf,(Char *) "!\n!!bad bit!!!\n");
                  SFrelease(sf,FALSE);
                  SFrelease(outf,TRUE);
		  return 1;
	      } else {
		  PrintBit(outf,nslbit);
	      }

	  FreeBit(nslbit);
    }

    SFrelease(sf,FALSE);                                   (1)
    SFrelease(outf,TRUE);                                  (2)

    return 0;
}

(1)
The doctype is not freed, since outf still needs it
(2)
The doctype can safely be freed, since no other file
	    needs it.



V. Document type information
This section describes functions for getting information about
the elements and attributes of a document type definition which is
present in a disk file. These files are either .ddb
files generated by LT NSL or simply XML documents which happen to
be stored in files.
Table of Contents
LoadDoctype — load document type from file.
DoctypeFromDdb — function to read a description of an XML DTD which is contained in the .ddb file
given by the file name filename.
DoctypeFromFile — function to read a description of an XML DTD which is
	  contained in the XML file
given by the file name filename.
LoadDoctype
Name
LoadDoctype -- load document type from file.
Synopsis
NSL_Doctype LoadDoctype(const char8 *filename)
Description
A new function

has been added.  It
reads the doctype from the file, either by calling
DoctypeFromDdb (if
the filename ends .ddb) or by opening the file as an input file,
and returning the resulting doctype.
In LT XML 1.2 the -d flag
passed to standard applications
has been changed
to use this function, so that the applications can now be given
alternate doctypes to use with XML files.
This function means that  DoctypeFromDdb
should probably be removed from the API, except
that the latter does not require that
that DDB files have a .ddb extension.

DoctypeFromDdb
Name
DoctypeFromDdb -- function to read a description of an XML DTD which is contained in the .ddb file
given by the file name filename.
Synopsis
NSL_Doctype DoctypeFromDdb( const char * filename);
Caveat
Warning
The base distribution of LT XML 1.2 does not include
	 tools for generating .ddb files, although
	 it is able to process them. The next version of LT NSL will
         be packaged as an add-on, which enhances LT XML with
	 additional tools based on James Clark's SP. This will provide
	 continued support of .ddb files for
	 users of LT NSL.

In any case, it is preferable to use
	    LoadDoctype, which also handles XML
files.
DoctypeFromFile
Name
DoctypeFromFile -- function to read a description of an XML DTD which is
	  contained in the XML file
given by the file name filename.
Synopsis
NSL_Doctype DoctypeFromFile( const char * filename);
Description
The returned document type can be used to open other input sources.

VI. File positioning
Table of Contents
SFseek — function that calls fseek on the
	  FILE*
associated with file.
SFtell — function that returns the seek pointer location as measured in
  bytes from the beginning of the file.
SFseek
Name
SFseek -- function that calls fseek on the
	  FILE*
associated with file.
Synopsis
int SFseek(NSL_File file, size_t pos);
Description
  The seek pointer associated with file is set to pos
  bytes into the file. The return value is pos, or -1 on
  error. Not surprisingly, an error is signalled, if the input
  file which the NSL_File is based on is
compressed, or if the FILE* in question corresponds to
a socket or a pipe.

SFtell
Name
SFtell -- function that returns the seek pointer location as measured in
  bytes from the beginning of the file.
Synopsis
size_t SFtell( NSL_File file );
Errors
On failure, it returns -1. Reasons for failing are
	  similar to those for SFseek
VII. URL Utilities
Table of Contents
GetFileURL —  function that returns the URL associated with file.
SetFileURL — function that sets the base URL associated with a file
url_merge — function to fill in default information in a
	  target URL by merging it with a base URL. The target
	  information takes precedence.
GetFileURL
Name
GetFileURL --  function that returns the URL associated with file.
Synopsis
const char * GetFileURL(NSL_File file);
Description
Returns the URL associated with file.
This URL is typically
  used as the base for URLs referred to in the document.
SetFileURL
Name
SetFileURL -- function that sets the base URL associated with a file
Synopsis
 void SetFileURL(NSL_File file, const char *url);
Description
Sets the URL associated with file to be url.  This is useful in conjunction with OpenStream and OpenString.
  and in cases where the intended effective URL of the file is different from
  the effective URL with which it was opened.
url_merge
Name
url_merge -- function to fill in default information in a
	  target URL by merging it with a base URL. The target
	  information takes precedence.
Synopsis
 char *url_merge(const char *url, const char*base,char **scheme, char **host, int *port, char **path);
Description
  Merge the URL url with the base URL
	base.  The merged
  URL is returned.  The parts of the URL are returned in scheme,
  host, port and path if these are non-NULL.

VIII. Reading SGML
There are two methods of reading XML files. The first is to use
GetNextBit or GetNextItem which are described below. The
other is to use the LT XML query facilities which are described in the
next section.
Table of Contents
GetNextBit — function that returns the next NSL_Bit on a stream
GetNextItem — function that returns the next NSL_Item on a stream
ItemParse — function that fills in an NSL_Item of type NSL_inchoate
GetNextBit
Name
GetNextBit -- function that returns the next NSL_Bit on a stream
Synopsis
 NSL_Bit *   GetNextBit( NSL_File sgmlfile);
Description
Read and return the next NSL_Bit from the NSL_File,
which must be open for reading.  The NSL_Bit returned is an
API-internal constant, so its contents will not be preserved
from one call to the next. NULL is returned at end of file.
GetNextItem
Name
GetNextItem -- function that returns the next NSL_Item on a stream
Synopsis
 NSL_Item *   GetNextItem( NSL_File sgmlfile);
Description
Read and return the next NSL_Item from sgmlfile. If the
  current position in the file is before an SGML start tag, the
  entire contents of this element is returned. If before an SGML
  empty tag, then this is returned. NULL is returned at end of
  file. Processing instructions are ignored and the next element read
  and returned. It is an error if the current file position is not
  before SGML markup, i.e. before text or a close tag.
  It is possible to mix calls to GetNextItem with calls to
  GetNextBit on the same file, as long as you know that you are
  positioned before a start tag before calling GetNextItem. In
  practise, you often do not know this until you have already read the
  start bit. The following function lets you read the rest of the item
  once you have read its start bit.
ItemParse
Name
ItemParse -- function that fills in an NSL_Item of type NSL_inchoate
Synopsis
 NSL_Item * ItemParse( NSL_File sgmlfile, NSL_Item *item);
Description
  Given an NSL_Item of type NSL_inchoate, (i.e. one
  which only refers to an SGML start tag), read the SGML file
    sgmlfile (up to the matching end tag) and fill in the contents of
  this NSL_Item.
Usage
The fragment below, shows how one might handle the case where you are
reading bits and want to change to reading items.
/* reading bits */
bit = GetNextBit(file);
if( bit->type == NSL_start_bit ){
   item = ItemParse(file,bit->value.item); /* reads this item, including its subitems */
    ...  /* now read some subsequent items */
}
IX. Queries
Table of Contents
ParseQuery — function to convert a query to internal form
ParseQueryR — convert a query to internal form, allowing
	  regular expressions as value of attributes
ParseQuery8 — convert an 8-bit  query to internal form
ParseQueryR8 — convert an 8-bit  query to internal form, allowing
	  regular expressions as value of attributes
GetNextQueryItem — function that fetches the next item matching a
	  query, optionally printing non-matching content as it is read
RetrieveQueryItem — function that searches an in-memory item for
	  matches to a query
RetrieveQueryData — retrieve NSL_Datas which match a query
ParseQuery
Name
ParseQuery -- function to convert a query to internal form
Synopsis
 NSL_Query ParseQuery( NSL_Doctype doctype, const Char* qu );
Description
  This function takes a string containing a query and converts it into
  an internal form which can be used as a argument to
  GetNextQueryItem or RetrieveQueryItem.  A query is a pattern
  which defines which SGML elements to select. Note that
	  qu is
  const and can be freed ad lib, as ParseQuery makes a private
  internal copy of the parts it holds on to.
ParseQueryR
Name
ParseQueryR -- convert a query to internal form, allowing
	  regular expressions as value of attributes
Synopsis
 NSL_Query ParseQueryR( NSL_Doctype doctype,const Char* qu );
Description
  This function is similar to ParseQuery but its query
  may contain regular expressions for the values of attributes.
  Regular expressions are handled by Henry
  Spenser's implementation (see regexp(3) for documentation). A version
  of this regexp package is included in the LT XML library.
ParseQuery8
Name
ParseQuery8 -- convert an 8-bit  query to internal form
Synopsis
 NSL_Query ParseQuery8( NSL_Doctype doctype,const char8* qu );
Description
  This function is similar to ParseQuery but its query
is an 8-bit string even when the system is compiled in 16-bit mode.
ParseQueryR8
Name
ParseQueryR8 -- convert an 8-bit  query to internal form, allowing
	  regular expressions as value of attributes
Synopsis
 NSL_Query ParseQueryR8( NSL_Doctype doctype,const char8* qu );
Description
  This function is similar to ParseQueryR but its query
is an 8-bit string even when the system is compiled in 16-bit mode.
GetNextQueryItem
Name
GetNextQueryItem -- function that fetches the next item matching a
	  query, optionally printing non-matching content as it is read
Synopsis
 NSL_Item *
	  GetNextQueryItem( NSL_File infile,
  NSL_Query q, NSL_File
	  ofile );
Description
  Given am XML document infile (open for reading) and a
  NSL_Query query return the next complete SGML element which
  matches this query as an NSL_Item.

  Parts of the input document which occur between the present position
  and the matching item are written to the ofile output
  document. If ofile is NULL then input which does not match the query
  is read and discarded.

  Subsequent calls to GetNextQueryItem return subsequent matches. In
  nested elements (for example <P> inside <P>) only the outer
  element is returned.

  GetNextQueryItem returns a pointer to the matching item or NULL if
  end of file was reached.
Usage
 A standard paradigm for using GetNextQueryItem is thus:
      while( ( item=GetNextQueryItem(infile, query, outfile ) ) ) {
           process_item(item);
           PrintItem(outfile, item);
           FreeItem(item);
      }
  where process_item is your code that modifies item}.
RetrieveQueryItem
Name
RetrieveQueryItem -- function that searches an in-memory item for
	  matches to a query
Synopsis
 NSL_Item *
	  RetrieveQueryItem( NSL_Item *uitem,
  NSL_Query query , const
	  NSL_Item *from );
Description
This function does a depth first search of
	  uitem to find all
items inside it which match the query query. On the first call,
from should be NULL. On
	  subsequent calls, if from
is set to the previous match (return value) then subsequent matches
will be returned. NULL is returned if there are no (more) matches.
Usage
An example of its use:
subitem = NULL;
while( subitem = RetrieveQueryItem(item, query, subitem) ){
   /* Do something with subitem */
}
RetrieveQueryData
Name
RetrieveQueryData -- retrieve NSL_Datas which match a query
Synopsis
 boolean
	  RetrieveQueryData( NSL_Item *uitem,
  NSL_Query query , const
	  NSL_Data **fromRet, boolean
	  noText );
Description
A new function in LT XML 1.2, This function is similar in
spirit to RetrieveQueryItem. However, it returns the
  NSL_data structure which contains the matching item (in the
  fromRet parameter) and it returns TRUE/FALSE depending on whether a
matching data was found or not. This means it can be used to find
particular bits of text content, rather than only SGML elements.  If
however, noText is TRUE, then we only return NSL_Data
which contain an NSL_Item.
Note: Unlike RetrieveQueryItem, the fromRet parameter
should not be NULL, it must be a non-NULL pointer to a pointer to an
NSL_Data, which should be NULL on the first call.
Usage
An example of its use:
NSL_Data *foundData=NULL;
while( RetrieveQueryData(item, query, &foundData, noText) ){
   /* Do something with foundData */
}
X. Printing
The following functions can be used to write to NSL_File
outputs. Writing to NSL_Files using printf or other such
functions is not recommended since that could result in
the generation of invalid SGML.
Here be lions:  PrintText prints #PCDATA --  any '&' or '<'
characters in the text will be taken to stand for the
characters themselves, and printed using appropriate escapes in order
to ensure that the next XML processor in the pipeline does not think
that they mark SGML structure.
Thus the use of PrintText is
not
an effective means of adding extra
SGML structure to an output file.
If you want to do this, perhaps in order to cage dangerous lions inside a
vulnerable larger
structure, to one possibility is to use
GetItemFromString as follows:
   static char buffer[SIZE_FOR_A_LARGE_LION_PLUS_14];
   sprintf(mystring,"<cage>%s</cage>",wild_animal_string);
   item=GetItemFromString(mystring,doctype);
   PrintItem(file,item);
   FreeItem(item);
If the lion was a well-formed XML string and your guess about
the
buffer size was sufficiently conservative, nobody will get eaten.


Note: Another possibility is to use
PrintTextLiteral, which does not expand putative
markup in the provided text.
Table of Contents
PrintBit — Print a single bit.
PrintStartTag — print the start-tag of a new item
PrintItemStartTag — print the start tag of an existing item
PrintEndTag — print the end-tag on an item
PrintItem — Print an  item.
PrintText — Print text
PrintTextLiteral — Print text literally with no expansion of markup.
ForceNewline — ensure that a newline is put to the output file
ForceOutput — flush output to an SGML stream
PrintBit
Name
PrintBit -- Print a single bit.
Synopsis
 int        PrintBit(NSL_File fp, const NSL_Bit *bit );
Description
Print the bit in a manner determined by its type.
PrintStartTag
Name
PrintStartTag -- print the start-tag of a new item
Synopsis
 int        PrintStartTag( NSL_File fp, const char *label
    );
Description
Equivalent to PrintBit on an item of type
  NSL_start_bit. Label is the name of the SGML element which
is being opened.
This function does not allow for the specification of attributes
on the start tag, so its usefulness is limited.
PrintItemStartTag
Name
PrintItemStartTag -- print the start tag of an existing item
Synopsis
 int        PrintItemStartTag( NSL_File fp,const NSL_Item *item );
Description
Equivalent to PrintBit on the
start bit of item
PrintEndTag
Name
PrintEndTag -- print the end-tag on an item
Synopsis
 int        PrintEndTag( NSL_File fp, const char *label
    );
Description
Equivalent to PrintBit on an item of type
  NSL_end_bit. Label is the name of the SGML element which
is being closed.
Obviously, if you do this, you are taking on the responsibility
	  for ensuring that everything is balanced
PrintItem
Name
PrintItem -- Print an  item.
Synopsis
 int PrintItem(NSL_File fp,const NSL_Item *item );
Description
Print the item.
PrintText
Name
PrintText -- Print text
Synopsis
 int PrintText(NSL_File
	  fp, const Char *text );
Description
Print the text. See Here be lions
PrintTextLiteral
Name
PrintTextLiteral -- Print text literally with no expansion of markup.
Synopsis
 int PrintTextLiteral(NSL_File
	  fp, const Char *text );
Description
Print the text without escaping XML special characters See Here be lions
ForceNewline
Name
ForceNewline -- ensure that a newline is put to the output file
Synopsis
 void ForceNewline( NSL_File fp);
Description
Writes a newline to the output stream NSL_File, but taking
account of XML state and printing mode.
ForceOutput
Name
ForceOutput -- flush output to an SGML stream
Synopsis
 int ForceOutput( NSL_File fp);
Description
Flushes the output NSL_File.
XI. Attributes
Table of Contents
GetAttrStringVal — Get the value of an attribute
GetAttrVal — get the value of an attribute.
GetAttrSVal — get an explicitly present attribute value
PutAttrVal — set an attribute value
GetIDVal — get the value of the ID attribute on an item
GetItemFromString — read an item from a string
GetAttrStringVal
Name
GetAttrStringVal -- Get the value of an attribute
Synopsis
 const Char * GetAttrStringVal( const NSL_Item *item,
    const char *name);
Description
  Return the value of attribute name associated
	  with the NSL_Item item as a string (0-terminated Char sequence).

  Defaulted as well as explicitly given attributes can be accessed
  using this function. Default values (defined in the DTD) will
  be returned if there is no explicit attribute value given on the
  SGML element represented by the item. There is no direct way
  to tell if you are getting explicit or default values.
  In the case that there is no proper default value given in the DTD, i.e. if the attribute's default value specification is
  #IMPLIED or #CONREF, and there is no explicit value, then GetAttrStringValreturns a pointer to the constant empty string
  NSL_Implied_Attribute_Value.
Usage
  Thus a safe way of calling this function is
  if( ( tagVal = GetAttrStringVal(item,attrName))){
    if( tagVal == NSL_Implied_Attribute_Value){
      /* No value given, it is up to the application */
      /* to decide on a value                        */
    } else {
      /* Attribute value defined. NB it may be an empty string */
    }
  } else {
    /* An error - probably attrName is not defined for this item */
  }

  This function returns NULL on error.
GetAttrVal
Name
GetAttrVal -- get the value of an attribute.
Synopsis
 const void * GetAttrVal( const NSL_Item *item,
    const char *name );
Description
  Return the value of attribute name associated with the     NSL_Item item as an untyped pointer. Defaulted as well as
  explicitly given attributes can be accessed using this function.
  Return values are as for GetAttrStringVal.  In the present
  release, this function is the same at GetAttrStringVal.
  In future, it is possible  that we will introduce typed attributes, in
  which case this function will return a pointer to the typed value of
  the attribute, (for example a pointer to an int if the attribute is
  of type NSL_attr_num).
GetAttrSVal
Name
GetAttrSVal -- get an explicitly present attribute value
Synopsis
 const Char *GetAttrSVal(const NSL_Item *item, const char *name);

Description
If no value is
 explicitly present on the item, no processing is undertaken to
	  recover default information from the DTD, and
 NULL is returned.
PutAttrVal
Name
PutAttrVal -- set an attribute value
Synopsis
 int PutAttrVal( NSL_Item *item,const char *aname, const char *newval);
Description
  This function changes an existing attribute if present, adds a new
  one otherwise, and returns an integer as follows: -1 on error, 0 if
  changed an existing attribute, 1 if made a new one.  It does not
  free the old value if there was one.

  There is one subtlety to this: if one sets a #CONREF attribute to
  an explicit value with this function, then the item will be
  marked as type NSL_empty.
GetIDVal
Name
GetIDVal -- get the value of the ID attribute on an item
Synopsis
 char *GetIdVal( const NSL_Item *item);
Description
This function returns the value of the attribute of
	   item which
is of type ID. If the item has no attribute of this type, then NULL is
returned. The point of this function is that since an SGML element
can have at most one ID attribute, one need not know the name of this
attribute in order to find an element's identifier.
GetItemFromString
Name
GetItemFromString -- read an item from a string
Synopsis
 NSL_Item *GetItemFromString(const char *text, const NSL_Doctype dtype);
Description
	 Read a single NSL_Item from the C string text. This function
provides a simple way of constructing a piece of SGML structure within
a program. For example:
   item = GetItemFromString("<name>David<surname>McKelvie</surname></name>",dct);
will construct the data structure shown in Figure 1.
If there is more than one toplevel SGML element in the string, then
only the first complete element is returned. If the string does not
start with an element then NULL is returned. dtype should be a concrete
NSL_Doctype data structure obtained via
DoctypeFromFile
or something similar.
XII. Creating LT XML data structures
There are two means of creating LT XML data structures: from
strings (using GetItemFromString) and via
explicit API manipulations, using a raft of other functions.
Table of Contents
NewNullNSLData — Create a new empty NSL_Data structure.
NewNullNSLItem — create a new item
NewTextNSLData — create a new NSL_Data containing some text
NewItemNSLData — Creates a new empty Item
NewNullNSLData
Name
NewNullNSLData -- Create a new empty NSL_Data structure.
Synopsis
 NSL_Data *  NewNullNSLData(NSL_Doctype doctype );
Description
Create a new empty NSL_Data structure (with type
  NSL_undefined).
NewNullNSLItem
Name
NewNullNSLItem -- create a new item
Synopsis
 NSL_Item * NewNullNSLItem( NSL_Doctype doctype,const char *name, int len);
Description
Create a new NSL_Item (with type set to NSL_inchoate)
which refers to an SGML element with name name, as defined in
the DTD described by doctype. Len is
the length of the name (if it is zero, then NewNullNSLItem will
calculate the length of the name. Returns NULL if no doctype is
specified. If no element called name is specified in the DTD,
then an NSL_Item will be created with a NULL defn field and a
warning message will be printed.
NewTextNSLData
Name
NewTextNSLData -- create a new NSL_Data containing some text
Synopsis
 NSL_Data *NewTextNSLData( const NSL_Doctype doctype,
const Char *text,
int len, boolean copy, const NSL_Data *nextptr, boolean
	  insert);
Description
Creates a new NSL_Data containing
	  the given text. If copy is true, then the string data will be copied into the new
NSL_Data, otherwise the string will be pointed to.  The next pointer
of the new NSL_Data will be set to nextptr. If
nextptr is not NULL then the new NSL_Data's in pointer will
point to the in pointer of nextptr. If in addition
	  insert
is true then the new data will be installed as the first data element
of the parent node of nextptr. If insert is true, then
nextptr should not be NULL, which means that you cannot use this
function to add a new NSL_Data to an NSL_Item which has got no
NSL_Data under it already.
Usage
What this all means is as follows. Given an NSL_Item item, the
following code will add the text ``Some text'' as the first chunk of
the content of this item.
NewTextNSLData("Some text", 0, TRUE, item->data,TRUE);
Given an NSL_Data data, the following code will insert the
string ``Some text'' after the data, ensuring that all pointers are
updated correctly.
new_data = NewTextNSLData("Some text", 0, TRUE, data->next,FALSE);
if( data->next == NULL ){
   new_data->in = data->in;
}
data->next = new_data;
NewItemNSLData
Name
NewItemNSLData -- Creates a new empty Item
Synopsis
 NSL_Item *NewItemNSLData(NSL_Doctype doctype,
    const char * name,
	  int len, const NSL_Data *nextptr, boolean insert);
Description
  Similar to NewTextNSLData.  Creates a new empty Item with name
  name, len is the length of name or 0 if the length is
  unknown. Make the new Item the 'first' of a new Data.  Give that
  Data nextptr for its 'next' field.  If nextptr is
  non-NULL, copy its 'in' field to the new Data's 'in' and, if
    insert is true, make the new Data be 'first' of its 'in', i.e.
  insert the new Data at the head of the Data chain.
XIII. Copying LT XML structures
These functions copy information obtained from the API, in order
that modifications can be made without affecting the originals.
We have ceased to document the confusing
CopyBit, since it does not allocate heap memory,
and is equivalent to a C structure assignment operation. It should not
be used. We'll leave it in for now, just in case it makes life easier
for you.


NSL_Bit bit1,bit2;

bit1 = bit2;
Table of Contents
CopyData — recursive copy of a list of sub-items
CopyItem — recursive copy of an item
CopyData
Name
CopyData -- recursive copy of a list of sub-items
Synopsis
 NSL_Data * CopyData(
	  const NSL_Data *data, const NSL_Item *
item);
Description
  This function makes a copy of the
	  NSL_Data structure data and returns the copy. The new NSL_Data will be placed
  inside item, (i.e. its
	  in pointer will point at item).  This operation is a recursive tree walk, not a shallow
  copy.  Copies will be made of all strings and all NSL_Items
  encountered. If the structure copied is large, the memory expenditure involved may
	  be substantial.
CopyItem
Name
CopyItem -- recursive copy of an item
Synopsis
 NSL_Item *  CopyItem( const NSL_Item *item );
Description
  This function makes a copy of the NSL_Item
	  structure item and returns the copy.  Copying is recursive, so copies will
  be made of all strings and all NSL_Items within
	  item. The cost
	  of this operation depends on the total size of the
	  structures copied.
XIV. Structure navigation and Modification
Table of Contents
AddItemToEnd — Add an item after the existing daughters
MoveDataTail — Move the data after a given location to a new location.
InstallDataTail — Move an NSL_Data and its
	  successors to a new location.
InstallData — function to move the successors of an NSL_Data
	  to a new location.
LinkItem — create a data to hold an item, and link latter
	  into place as child of an element
LinkText — like LinkItem but for text data
AddPCData — Add text below an item
NextDFSNoChildren — Return the first piece of "real content" after a
	  data.
ObtainItem — find an NSL_Item within an NSL_Data
ParentItem — Find the parent item of an item
GetPCDataBelow — return first piece of text data below an item
AddItemToEnd
Name
AddItemToEnd -- Add an item after the existing daughters
Synopsis
 NSL_Data *AddItemToEnd( NSL_Item *item,NSL_Item
	  *titem)
Description
This function adds the item titem after all existing daughters
  of
item. Item
  can be empty. It returns the new NSL_Data that was created to
  hold titem.
MoveDataTail
Name
MoveDataTail -- Move the data after a given location to a new location.
Synopsis
 NSL_Data
	  *MoveDataTail(NSL_Data *whereTo,NSL_Data *whereFrom);
Description
Move the chain of NSL_Datas occuring after
	  whereFrom to
after whereTo, i.e. whereTo->next =
  whereFrom->next;. The data.in pointers of the moved datas
are changed to point to the in pointer of whereTo.
whereFrom itself is not
	  moved, but all its successors in the chain are.
InstallDataTail
Name
InstallDataTail -- Move an NSL_Data and its
	  successors to a new location.
Synopsis
 NSL_Data *InstallDataTail(NSL_Data *whereto, NSL_Data *newTail);
Description
Add the chain of NSL_Datas
	  newTail after whereTo
(i.e. set whereTo's next pointer to newTail),
setting their in pointers to the correct place. In contrast
	  to MoveDataTail, newTail itself is moved by
	  this function.
InstallData
Name
InstallData -- function to move the successors of an NSL_Data
	  to a new location.
Synopsis
 NSL_Item
	  *InstallData(NSL_Item *item, NSL_Data
*data);
Description

Add data as first NSL_Data of item and set in
pointers of this chain to be item. If data is NULL, will render
item empty, by setting
its type to NSL_empty.
Note: The original value in
item's
data
pointer is overwritten: if you need the original for any purpose, for
example to ensure that it is correctly freed, you must have saved the
value
before you call InstallData
LinkItem
Name
LinkItem -- create a data to hold an item, and link latter
	  into place as child of an element
Synopsis
 NSL_Data *LinkItem(
const NSL_Doctype  doctype,
NSL_Data *dptr,
NSL_Item *item
);
Description
 This function creates a new
	  NSL_Data  which contains the item and links the data after the given data dptr. Returns
  a pointer to the new data.  Changed in release 1.2 to have a
doctype argument.
LinkText
Name
LinkText -- like LinkItem but for text data
Description
   This function creates a new NSL_Data which contains the
    text pointer and links the data after the given data dptr.
  Returns a pointer to the new data.
Note:   N.B. Previously, this function copied the text pointer,
  but this made tree manipulation code more complex and so was
  removed.
AddPCData
Name
AddPCData -- Add text below an item
Synopsis
 NSL_Item *  AddPCdata( NSL_Item *uitem,
    NSL_Doctype doctype,
    const Char *pcdata, const Char *path );
Description
  Given an NSL_Item uitem and a string query
	  path which
  describes a location of an element relative to uitem, we add
  pcdata at this location. If an item is not found which matches
  this query, then an item with the name of the last element
in path is created, then
intermediate structure leading to that item is constructed as needed.
Note: The
path given by the
programmer must be expressed in
	  the  subset
	  of the query language syntax which does not include
	  wildcards "." or iteration "*". If you violate this
	  constraint the behaviour of the system is undefined.
The pcdata is then added to the matching item
  as the last data daughter. In order to
correctly process the query we need the document type of
  the SGML tree being edited, this is given by the doctype parameter.
NextDFSNoChildren
Name
NextDFSNoChildren -- Return the first piece of "real content" after a
	  data.
Synopsis
 NSL_Data
	  *NextDFSNoChildren( const NSL_Data *data,boolean noText );
Description
  Given an NSL_Data return the next NSL_Data. The
  returned NSL_Data corresponds to the next SGML element or
  piece of text content occuring textually after data in the
  document. However, this function does not read from a file, i.e.
  This is purely a tree-traversal function.
If no next data is found
  NULL is returned. If noText is TRUE,
  then only datas which contain an NSL_Item are returned, ie
  text content is skipped until we find the next SGML
	  element.
The name for this function is not very good. It
returns next data which appears after data and the contents
of data
in a top-down left-to-right traversal of the tree. By analogy with
	  what
a common function provided by symbolic debuggers
it could be called StepOut.
ObtainItem
Name
ObtainItem -- find an NSL_Item within an NSL_Data
Synopsis
NSL_Item *  ObtainItem( const NSL_Data *data, const char *itemname, int len );
Description
  This function returns a pointer to the first
	  NSL_Item
having the label (element
  name) itemname
which is
  contained in the NSL_Data data
. Len is the length of the element name.
  NULL is returned if no such NSL_Item is found.
  This function was called ObtainData in a  previous release,
  which was confusing, as it didn't return a data.
ParentItem
Name
ParentItem -- Find the parent item of an item
Synopsis
 NSL_Item *
	  ParentItem( const NSL_Item *item );
Description
  Given a pointer to a NSL_Item,
	  item, this function returns
  the NSL_Item which contains it, or NULL if it is not
  contained in any. It follows the in chain of pointers twice,
  in terms of Figure Figure 1 the ParentItem of the <surname>
  item is the <name> item.
GetPCDataBelow
Name
GetPCDataBelow -- return first piece of text data below an item
Synopsis
 Char *GetPCDataBelow(NSL_Item *item);
Description
  Given an item, return the text of the first immediate child of it
  which is text data. Returns NULL if there are none.
XV. Freeing LT XML data structures
The following functions will reclaim space used by LT XML data
structures of various kinds. It is the responsibility of the
programmer to free structures which are no longer needed, garbage
collection is not supported. The following functions are recursive
however, in that they free the other data structures pointed to by the
structures explicitly freed, this includes the character data and
attribute values of the freed element. You can free NSL_Items and NSL_Datas twice without ill effects (the second free being a
no-op, although an warning message will be written to stderr).
Freeing any of the others twice will have undefined and probably
catastrophic effects. All functions return TRUE for success and FALSE
for failure.
Table of Contents
FreeBit — release memory associated with the item
	  that a bit contains.
FreeData — Free the data.
FreeDoctype —   Free the space occupied by a NSL_Doctype
FreeItem — free an item and its contents
FreeQuery — free a query
FreeBit
Name
FreeBit -- release memory associated with the item
	  that a bit contains.
Synopsis
 boolean        FreeBit( NSL_Bit *bit );
Description
Note: Note that this function does not free the bit, it
	  frees the item (if any) to which the bit refers. You need to
	  do this in the (common) case that you are
working with the event level interface (via
	  GetNextBit), in which case NSL_Items
	  will have been created for bits of type
	  NSL_start_bit and
	  NSL_empty_bit. The presence of this
pointer from bits to items is what makes
	  possible the amphibious switching between the event level
	  and the item level in ItemParse.
FreeData
Name
FreeData -- Free the data.
Synopsis
 boolean FreeData( NSL_Data *data );
Description
Free data
	  and its children.
FreeDoctype
Name
FreeDoctype --   Free the space occupied by a NSL_Doctype
Synopsis
 boolean        FreeDoctype( NSL_Doctype doctype );
Description
Note: Once you have called this function, then you should
	  not use any items, bits, or datas, or NSL files that refer
	  to this doctype.  SFclose is one of the
	  many functions which do use this data, so to be safe you
	  should never close a file after you have freed its
	  doctype. The idiom has to be

dct = DoctypeFromFile(file);
SFclose(file);
FreeDoctype(dct);

You are probably better off
	  calling SFrelease in any case.
FreeItem
Name
FreeItem -- free an item and its contents
Synopsis
 boolean        FreeItem( NSL_Item *item );
Description
FreeQuery
Name
FreeQuery -- free a query
Synopsis
 boolean        FreeQuery( NSL_Query q );
Description
XVI. Accessing the DTD
The following functions are designed to
allow a program to find out (some of) the structure of the DTD.
This structure is the list of valid element names, the attributes
associated to the elements, and the list of defined entities and their
values.
 Since XML does not require that a document have a DOCTYPE
declaration, we do not necessarily enforce the
invariants specified by the DTD even when it is present.
The level of enforcement is (to a degree) under user
control.
The following functions can only return the information about
the elements which is known at the time of the call. It is
unwise to blindly rely on the results of
calls made early in the processing of document, since it may be that
new information may have been discovered in subsequent processing.
Table of Contents
DocumentIsNSGML — determine mode of document
ElementContent — Return a (string) representation of the content
	  model for an element.
FindElementByName — element summary from name
FindElementAndName — element summary from non-unique name
ElementAttributes — return the attribute descriptions of an element summary
FindAttrSpec — obtain summary of an attribute
FindAttrSumAndName — obtain information about attribute of an element
ElementExists — find out whether it does
AttrExists — find out whether it does
GetAttrDefVal — Get the default value for an attribute.
GetAttrDeclaredValue — Get the declared value from an attribute summary.
NewAttrVal — add attribute and value to item
GetAttrDefaultValueType — Get default value type of an attribute
AttributeName — return the attribute name
GetAttrAllowedValues — find the allowed values for an attribute
GetEntity — summary information about an entity.
GetEntityValue — Get the value of an entity (as string)
GetEntityDataType — Obtain a value to indicate the nature of an entity.
DocumentIsNSGML
Name
DocumentIsNSGML -- determine mode of document
Synopsis
boolean DocumentIsNSGML(NSL_Doctype dct);
Description
User-level predicate for determining whether a document is being
processed in XML mode or nSGML mode.
Note: Documents can be in nSGML mode or XML mode, depending
	 on whether they acquire their information about document
type from a .ddb file or by reading the XML
<!DOCTYPE... statement. The mode of
a document is determined
	 dynamically by the parser as it reads the initial part of the
	 document. In order to conform to the PR-xml-970128 it is necessary
	 to assume that in the absence of information to the contrary
	 we are dealing with XML. The fine detail of output
	 formatting for XML and nSGML differs, so certain
	 applications may need this information.
ElementContent
Name
ElementContent -- Return a (string) representation of the content
	  model for an element.
Synopsis
NSL_Element_Content ElementContent(NSL_Doctype doctype, NSL_ElementSummary eltsum, const Char **model);
Description
This function returns a representation of the content model of the
element in question.
The return value is an enumeration, one of:

    NSL_Content_mixed, NSL_Content_any, NSL_Content_cdata,
    NSL_Content_rcdata, NSL_Content_empty, NSL_Content_element

NSL_Content_cdata and rcdata
won't be returned for XML, since that content model is not allowed .  For mixed and element
content, if model is non-null the content model string is stored in it
(XML only; since for nSGML  we don't have the information).  This
function is likely to change, because future versions of the system
will more thoroughly parse the string representing the content model, returning a more
structured representation of the same.
The string returned in model belongs to the library,
and will get freed automatically when you free the corresponding NSL_Doctype.
Usage
    NSL_ElementSummary sum;
    NSL_Element_Content type;
    const Char *content = 0;

    sum = FindElementByName(dct, tag);
    type = ElementContent(dct, sum, &content);
FindElementByName
Name
FindElementByName -- element summary from name
Synopsis
Description
Given a Doctype and an SGML element name, return a summary of the
  properties of the element. Presently, NSL_ElementSummary
  structures are mainly used as a parameter to the other functions.
Note:
  elementname should be a unique name, if not either use
  ElementUniqueName to
  get a unique name or use FindElementAndName. If you are using
  the deprecated backward-compatibility mode which does not use unique names,
  this note can be ignored.
FindElementAndName
Name
FindElementAndName -- element summary from non-unique name
Synopsis
 NSL_ElementSummary FindElementAndName (NSL_Doctype doctype,const char **name, int len );
Description
  Given a name of an SGML element and len (giving its
  length), return an NSL_ElementSummary describing the element
  definition in the DTD. Name is also overwritten with a
  unique string name for this element as defined in the DTD
  described by doctype.
The name which you
  provide must be upper-case if the document being read is nSGML,
  can be mixed-case for XML
ElementAttributes
Name
ElementAttributes -- return the attribute descriptions of an element summary
Synopsis
 NSL_AttributeSummary *ElementAttributes(
    NSL_ElementSummary eltsum,const NSL_Doctype
    doctype, int * numAttr );
Description
  Given an element summary return a pointer to an array of attribute
  summaries for all the attributes defined for this element. The
  number of attributes is returned via the numAttr
  parameter. The array is allocated by malloc and it is the users responsibility
  to free it after use (say by calling free()).
Usage
  The following example code shows how one might do some processing on
  all attributes defined for an SGML element.
  NSL_Item *item;
  NSL_AttributeSummary *as;
  int numAttr;
  char * attrName;

  as = ElementAttributes(item->defn,&numAttr);
  for( i=0; i< numAttr; i++){
      attrName = AttributeName(as[i]);
      process(attrName);
  }
  free(as);
FindAttrSpec
Name
FindAttrSpec -- obtain summary of an attribute
Synopsis
 NSL_AttributeSummary
	  FindAttrSpec(NSL_ElementSummary elts,const char
	  *attrname);
Description
  Given an element summary and an attribute name, return a summary of
  the definition of the attributes defined for that element.
FindAttrSumAndName
Name
FindAttrSumAndName -- obtain information about attribute of an element
Synopsis
 NSL_AttributeSummary
	  FindAttrSumAndName( NSL_Doctype doctype,
    NSL_ElementSummary *eltptr, const char **name, int len);
Description

  Given a name of an
  SGML attribute, len (giving its
  length) and elts an
  element summary, return the NSL_AttributeSummary describing the attribute
  definition associated with that elemnt in the DTD. Name is also overwritten with a
  unique string name for this attribute as defined in the DTD
  described by doctype.
For nSGML name must be upper
  case.
Note that in the case of XML documents, calling this function with a
previously unknown attribute will modify both doctype and
elts to incorporate a default (CDATA #IMPLIED) declaration.  In this
case, eltptr is updated to point to the new definition.
}
ElementExists
Name
ElementExists -- find out whether it does
Synopsis
 boolean ElementExists(const NSL_Doctype doctype, const char *name,
                             int length);
Description
  With arguments similar to those of ElementUniqueName, simply
determine if name is
	  known as an element name in doctype.
AttrExists
Name
AttrExists -- find out whether it does
Synopsis
 boolean
	  AttrExists(const NSL_Doctype doctype,
const Char*name,
int length, NSL_ElementSummary
	  elts);
Description
  With arguments similar to those of FindAttrSumAndName, simply
determine if name is known as an attribute name from
elts in
doctype.  If
elts is NULL,
returns true if
name is known as an
attribute name from any element.
GetAttrDefVal
Name
GetAttrDefVal -- Get the default value for an attribute.
Synopsis
 const Char *GetAttrDefVal( NSL_AttributeSummary atsum );
Description
Given an attribute summary, return the default value of this
  attribute. If there is no default value defined in the
  DTD (e.g. for #REQUIRED, #IMPLIED or #CONREF attributes), it
  returns a pointer to the constant Char *NSL_Implied_Attribute_Value.
  Note the return value is not a copy, and therefore should not
be subsequently freed.
GetAttrDeclaredValue
Name
GetAttrDeclaredValue -- Get the declared value from an attribute summary.
Synopsis
 NSL_Attr_Declared_Value GetAttrDeclaredValue(NSL_AttributeSummary atsum);
Description
 Returns the 'declared value' of an attribute, i.e. the type of
  allowed values of this attribute. Possible values are as in the
  following enumeration type (semantics as per the SGML documentation):

typedef enum{ NSL_Dec_cdata, NSL_Dec_name, NSL_Dec_number,
              NSL_Dec_nmtoken, NSL_Dec_nutoken, NSL_Dec_entity,
              NSL_Dec_idref, NSL_Dec_names, NSL_Dec_numbers,
              NSL_Dec_nmtokens, NSL_Dec_nutokens, NSL_Dec_entities,
              NSL_Dec_idrefs, NSL_Dec_id, NSL_Dec_notation,
              NSL_Dec_nameTokenGroup } NSL_Attr_Dec_Value;
NewAttrVal
Name
NewAttrVal -- add attribute and value to item
Synopsis
boolean NewAttrVal( NSL_Item *item, const Char *aname,const Char *newval);
Arguments

  Add a new attribute called aname to the
NSL_Item item
  with the string newval as value.  Even if there is already
  such an attribute present, another one is added. For this reason the
  use of PutAttrVal is recommended.
  The return value is TRUE for success and FALSE for an error.
Note
Note that the attribute must already be known to occur on elements of
the type of item, i.e. must either have been declared in the
DTD or have already occured in input from the file item
came from.  Use DeclareAttr to add new attributes to an element type.
GetAttrDefaultValueType
Name
GetAttrDefaultValueType -- Get default value type of an attribute
Synopsis
 NSL_ADefType GetAttrDefaultValueType(NSL_AttributeSummary atsum);
Description
 Returns the 'default value type' of an attribute as per the
  DTD. Possible values are as described in the following enumeration
  type:

  typedef enum {NSL_defval_optional, NSL_defval_implied,
                NSL_defval_current,  NSL_defval_required,
                NSL_defval_value, NSL_defval_conref} NSL_ADefType;

  where NSL_defval_optional is when an explicit default value has been
  given in the DTD, NSL_defval_implied corresponds to
  #IMPLIED, NSL_defval_current corresponds to
  #CURRENT, NSL_defval_required corresponds to
  #REQUIRED, NSL_defval_value corresponds to
  #FIXED, and NSL_defval_conref corresponds to
  #CONREF.
AttributeName
Name
AttributeName -- return the attribute name
Synopsis
 const char * AttributeName( NSL_AttributeSummary
atsum );
Description
Returns the name of the attribute described by
	  atsum.
GetAttrAllowedValues
Name
GetAttrAllowedValues -- find the allowed values for an attribute
Synopsis
 const Char * GetAttrAllowedValues(NSL_AttributeSummary atsum,int * numVals);
Description
 Given an attribute summary and an element summary, return a pointer
  to the possible allowed values of this attribute. This is only the
  case if the attribute is an enumeration type attribute or a notation
  attribute, i.e.if GetAttrDeclaredValue(atsum) is
    NSL_Dec_nameTokenGroup or NSL_Dec_notation. Otherwise the
  return value of this function is NULL. The parameter numVals is set
  to the number of allowed values.  If the return value is not NULL,
  then it is a pointer to an array of string pointers
  (each '\0' terminated). The end of the array of string
  pointers is signalled by a single null pointer.
GetEntity
Name
GetEntity -- summary information about an entity.
Synopsis
 NSL_EntitySummary GetEntity(NSL_Doctype doctype,const char *entityName);
Description
  Given a Doctype and the name of an entity, return a summary of that
  entity.
GetEntityValue
Name
GetEntityValue -- Get the value of an entity (as string)
Synopsis
 const Char * GetEntityValue(NSL_EntitySummary entsum);
Description
 Returns the string value of the entity, as a null terminated array
  of Char.

There is no function to return all entities defined in the DTD, one
could be added if there is demand for it.
GetEntityDataType
Name
GetEntityDataType -- Obtain a value to indicate the nature of an entity.
Synopsis
 NSL_Entity_DataType GetEntityDataType(
    NSL_EntitySummary entsum);
Description
Returns the data type of the entity, which is as per the following
  enumeration type:

  typedef enum{ NSL_Ent_sgmlText, NSL_Ent_pi, NSL_Ent_cdata,
                NSL_Ent_sdata, NSL_Ent_ndata, NSL_Ent_subdoc }
                NSL_Entity_DataType ;

  See the SGML manual for the meanings of these types.
XVII. Other functions
For efficiency reasons, LT XML uses constant string pointers for all
element names and attribute names.
These names are unique to one doctype.
ElementUniqueName and
AttrUniqueName
find the unique name given a string. This usually arises when the
string has been obtained by reading an SGML document, in which case
it will have elements of type Char.
ElementUniqueName8 and
AttrUniqueName8
find the unique name given an 8-bit string.
This usual arises when strings are passed in from the command line or
specified as string literals in the program.
Table of Contents
ElementUniqueName — get the unique name of an element.
ElementUniqueName8 — get the unique name of an element.
AttrUniqueName — unique name for attribute
AttrUniqueName8 — unique name for attribute
ParseRCData —
CurrentBitOffset — offset of current bit (for indexing)
CurrentItemOffset — offset of current item (for indexing)
ElementUniqueName
Name
ElementUniqueName -- get the unique name of an element.
Synopsis
 const char * ElementUniqueName( NSL_Doctype doctype,const Char *name, int
	  length);
Description
  Given a name of an
  SGML element and length (giving its
  length, if length is 0 the length of the string will be
  calculated), return a unique string name for this element as defined
  in the DTD described by doctype. This unique name can then be
  used for comparison with the label field of NSL_Items
  by using the C operator ==
For nSGML; the name must be upper
  case.
ElementUniqueName8
Name
ElementUniqueName8 -- get the unique name of an element.
Synopsis
 const char * ElementUniqueName8( NSL_Doctype doctype, const char8 *name, int
	  length);
Description
As for ElementUniquename, except
	  that name is an 8-bit string, not a Char string.
AttrUniqueName
Name
AttrUniqueName -- unique name for attribute
Synopsis
 const char * AttrUniqueName( NSL_Doctype doctype, const Char
	  *name, int length);
Description
  Given a name} of an SGML attribute
	  and length (giving its
  length, if length is 0 the length of the string will be
  calculated), return a unique string name for this attribute as defined
  in the DTD  described by doctype}. This unique name can then be
  used for comparison with the attribute names found inside NSL_Items
  by using the C operator ==.
The name must be upper
  case.
Note:   The unique name associated with an attribute is only unique
  relative to an NSL_Doctype. In particular, if one opens an SGML
  file without specifiying a concrete NSL_Doctype, then a new
  NSL_Doctype is initialised. Two different files opened in this way
will have different "unique names" even for identical attributes. You
  will even get different names if you open the same file twice,
  unless you take explicit steps to ensure that the same NSL_Doctype
  data structure is used in each case.
AttrUniqueName8
Name
AttrUniqueName8 -- unique name for attribute
Synopsis
 const char * AttrUniqueName8( NSL_Doctype doctype, const char8
	  *name, int length);
Description
As AttrUniqueName but with an 8-bit string
as input.
ParseRCData
Name
ParseRCData --
Synopsis
 const Char * ParseRCData( NSL_Doctype doctype,
                         const Char *rcdata,
                         const Char *(*expandSData)(NSL_Doctype,const Char *));
Description
Given a string rcdata, ParseRCData
returns a new string in which all SDATA entity
references and numerical character references
in rcdata have been
expanded. This
activity makes little sense unless you are
processing normalized SGML,for the very good reason that
there aren't any SDATA entities in XML: the
XML standard doesn't allow them.
So XML this function is (nearly) a no-op.It copies the
string, but doesn't do any expansion.

 For this,
we need to know the SGML document type (doctype).  The expandSData parameter
is a function (of signature ( NSL_Doctype
doctype, Char *) returning Char*),
which is called with the value of each such
expanded entity. The value returned by this
function is the string interpolated into the
result of ParseRCData. Thus, the default
expandSData function, which just returns
the SGML defined entity value would be:
Char * expandSData( NSL_Doctype, doctype Char * char) {
     return char;
}
By default, LT XML does not expand SDATA entities or numerical
character references. Note that passing the output of
  ParseRCData to PrintText is potentially dangerous, as PrintText does no inverse processing, so the result may be invalid
XML
CurrentBitOffset
Name
CurrentBitOffset -- offset of current bit (for indexing)
Synopsis
size_t CurrentBitOffset(NSL_File * file );
Description
  Returns the character offset in the input XML file of the start
  of the last NSL_Bit read from it.Used to implement indexing schemes.
CurrentItemOffset
Name
CurrentItemOffset -- offset of current item (for indexing)
Synopsis
size_t CurrentItemOffset(NSL_File * file);
Description
Returns the character offset
  of the last NSL_Item read from file.
Used to implement indexing schemes.
XVIII. Manipulating Attributes
Attributes attached to SGML start tags are described by a linked
list of NSL_attr data structures attached to the NSL_Item.
typedef enum {NSL_attr_num, NSL_attr_nums, NSL_attr_id,
              NSL_attr_refid, NSL_attr_refids, NSL_attr_string,
              NSL_attr_entity, NSL_attr_entities, NSL_attr_float,
              NSL_attr_token, NSL_attr_tokens, NSL_attr_notation} NSL_AVType;

typedef enum {NSL_defval_optional, NSL_defval_implied, NSL_defval_current,
              NSL_defval_required, NSL_defval_value, NSL_defval_conref} NSL_ADefType;

typedef struct NSL_Attr {
    NSL_AVType valuetype;            /* type of value */
    NSL_ADefType deft;               /* type of default value */
    const char *name;                /* name of attribute */
    union {
        const Char *string;          /* NAME, STRING */
    } value;                         /* actual value */
    struct NSL_Attr *next;           /* list link */
} NSL_Attr;

The valuetype field describes the type of the attribute's value, see
SGML documentation for a description of the meaning of the different
attribute value types.
The deft field describes the kind of default value for this
attribute, see SGML documentation for a description of the meaning
of the different default value types.
The {\tt name} field gives the name of this attribute.
The valuestring} field gives the value of this attribute as a
string (Char array). This is a union type because in a
latter release we may want to introduce typed attribute values.
The next field points to another NSL_Attr structure for
the next attribute defined on this start tag, or NULL if this is the
last.
The following functions manipulate NSL_Attrs
Table of Contents
SetAttrValue — set value within attribute
GetAttrValue —   Get the string value of an NSL_attr.
CopyAttr — fresh copy of an attribute
FindAttr — search for an attribute by name in an attribute list
FreeAttr — free the memory associated with a list of
	  attribute-value pairs
SetAttrValue
Name
SetAttrValue -- set value within attribute
Synopsis
 boolean SetAttrValue( NSL_Attr *refvar,const Char *valin );
Description
  Set the value of an NSL_attr to a string.
  The return value is TRUE for success and FALSE for an error.
GetAttrValue
Name
GetAttrValue --   Get the string value of an NSL_attr.
Synopsis
 const void * GetAttrValue( const NSL_Attr *refvar );
Description
  Get the string value of an NSL_attr.
CopyAttr
Name
CopyAttr -- fresh copy of an attribute
Synopsis
 NSL_Attr *
	  CopyAttr(const NSL_Attr *attr, const NSL_Item
	  *item);
Description
  Copy an NSL_attr. This copies the whole linked list
	  of NSL_Attrs pointed to by attr. It allocates memory
	  from the memory pool associated with item.

Note: The item is new, motivated by
considerations of thread safety.
FindAttr
Name
FindAttr -- search for an attribute by name in an attribute list
Synopsis
 NSL_Attr *  FindAttr( const NSL_Attr *attr, const char *name );
Description
Search down the linked list of NSL_Attrs starting at
    attr to find one which has the given name

FreeAttr
Name
FreeAttr -- free the memory associated with a list of
	  attribute-value pairs
Synopsis
 boolean FreeAttr( NSL_Attr *attr, const NSL_Item *item );
Description
Free the linked list of NSL_Attrs
	   starting at attr.

Note: The item is new, motivated by
considerations of thread safety.  This function was incorrectly
documented in version 1.1.  A single attribute value may be freed with
sfree.
XIX. Miscellaneous
Table of Contents
ParseInit — no longer documented
ParseInit
Name
ParseInit -- no longer documented
Notes
This was documented in LT XML 1.1, but
	  shouldn't have been. It does some internal initialisation
	  for the parser, and is indirectly called by
	  NSLInit. As far as we can see the
	  reason for documenting it was to permit use of the parser
	  without the rest of the API. This need is now better met by
	  direct use of RXP.
Notes
[1]
sgrpg is quite baroque enough without messing
with the DTD for the command files. Even the standard syntax is not
really recommendable for use by the human eye or brain. In the
fullness of time we hope to provide high-level tools which generate
sgrpg code from more human-accessible specification
formats. These human accessible specifications are as yet
undesigned. M.Sc project material, maybe?
[2]
The obvious situation which needs unknit is
as a postprocessor in a pipeline where knit has
 been
used to create rich context for an automatic or manual annotation
 process, whose output needs to be picked apart into new
versions of the original components
 (perhaps in order to facilitate comparison of one or more of the
 components
with pre-existing "gold standard" annotations).
When we start doing this unknit will be more
 thoroughly exercised.
